| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_072T02_9000006194_46309cztM0_level2.fits | modeM0/AS1A13_072T02_9000006194_46309cztM0_level2_quad_clean.evt |
| Size (bytes) | 698,276,160 | 136,808,640 |
| Size | 665.9 MB | 130.5 MB |
| Events in quadrant A | 8,370,979 | 892,759 |
| Events in quadrant B | 6,668,288 | 863,512 |
| Events in quadrant C | 4,080,661 | 934,450 |
| Events in quadrant D | 6,037,360 | 833,435 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30564 | 1 |
| B | 0 | 25825 | 1 |
| C | 0 | 18889 | 1 |
| D | 0 | 24299 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 178 | 0 |
| B | 0 | 178 | 0 |
| C | 0 | 178 | 0 |
| D | 0 | 178 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8913 | 567 | 6.361494% |
| B | 8913 | 1036 | 11.623471% |
| C | 8914 | 75 | 0.841373% |
| D | 8914 | 427 | 4.790218% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9028 | 8914 | 204 | 204 | 2.26% | 2.29% |  |
| B | 9028 | 8914 | 714 | 714 | 7.91% | 8.01% |  |
| C | 9029 | 8915 | 9 | 9 | 0.10% | 0.10% |  |
| D | 9029 | 8915 | 236 | 236 | 2.61% | 2.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3354679 | 16278.36 | 988 | 964 | 206.0 |
| A | 15 | 223 | 1104905 | 5358.34 | 988 | 964 | 206.0 |
| A | 2 | 79 | 47296 | 224.89 | 988 | 964 | 206.0 |
| B | 4 | 171 | 2308851 | 12124.28 | 955 | 921 | 190.4 |
| B | 3 | 112 | 495280 | 2597.02 | 955 | 921 | 190.4 |
| B | 0 | 189 | 37746 | 193.45 | 955 | 921 | 190.4 |
| C | 12 | 249 | 59446 | 246.29 | 1000 | 1004 | 237.3 |
| C | 11 | 16 | 47834 | 197.35 | 1000 | 1004 | 237.3 |
| C | 12 | 2 | 43063 | 177.25 | 1000 | 1004 | 237.3 |
| D | 1 | 52 | 1705212 | 6917.42 | 976 | 945 | 246.4 |
| D | 13 | 138 | 250281 | 1012.03 | 976 | 945 | 246.4 |
| D | 11 | 192 | 144729 | 583.6 | 976 | 945 | 246.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

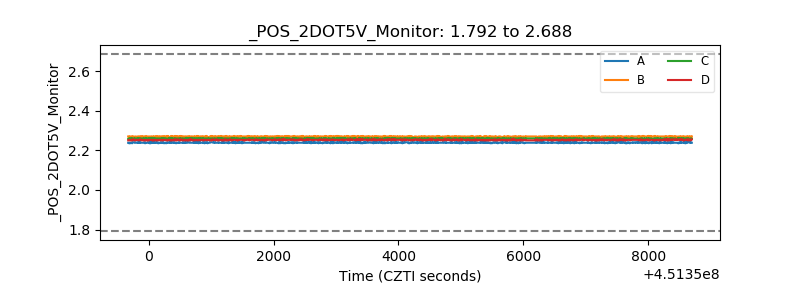

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
