| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_200T01_9000006196_46314cztM0_level2.fits | modeM0/AS1T05_200T01_9000006196_46314cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,840,640 | 113,339,520 |
| Size | 443.3 MB | 108.1 MB |
| Events in quadrant A | 6,104,595 | 754,531 |
| Events in quadrant B | 3,760,145 | 788,619 |
| Events in quadrant C | 3,166,800 | 750,580 |
| Events in quadrant D | 3,672,208 | 686,082 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21896 | 2 |
| B | 0 | 15186 | 2 |
| C | 0 | 13813 | 2 |
| D | 0 | 15271 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6482 | 272 | 4.196236% |
| B | 6482 | 219 | 3.378587% |
| C | 6482 | 86 | 1.326751% |
| D | 6482 | 157 | 2.422092% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7642 | 6483 | 22 | 22 | 0.29% | 0.34% |  |
| B | 7642 | 6483 | 91 | 91 | 1.19% | 1.40% |  |
| C | 7642 | 6483 | 14 | 14 | 0.18% | 0.22% |  |
| D | 7642 | 6483 | 61 | 61 | 0.80% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3080020 | 19191.97 | 777 | 759 | 160.4 |
| A | 13 | 248 | 12778 | 74.91 | 777 | 759 | 160.4 |
| A | 13 | 254 | 11593 | 67.52 | 777 | 759 | 160.4 |
| B | 5 | 255 | 245563 | 1629.15 | 771 | 748 | 150.3 |
| B | 4 | 171 | 226639 | 1503.22 | 771 | 748 | 150.3 |
| B | 3 | 112 | 119974 | 793.41 | 771 | 748 | 150.3 |
| C | 12 | 2 | 106511 | 591.71 | 764 | 771 | 178.7 |
| C | 11 | 16 | 38098 | 208.88 | 764 | 771 | 178.7 |
| C | 12 | 249 | 18128 | 97.13 | 764 | 771 | 178.7 |
| D | 1 | 52 | 500938 | 2628.85 | 761 | 738 | 190.3 |
| D | 2 | 249 | 72923 | 379.37 | 761 | 738 | 190.3 |
| D | 5 | 32 | 53633 | 277.99 | 761 | 738 | 190.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

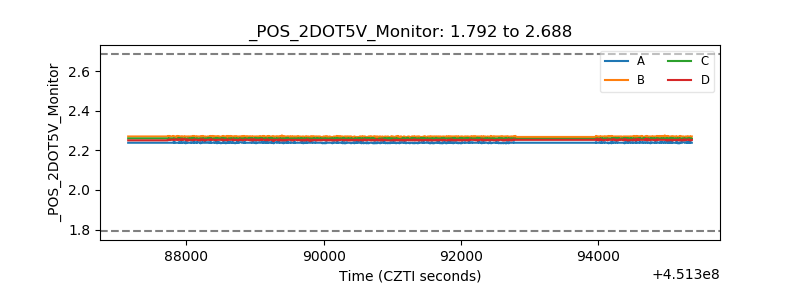

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
