| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_200T01_9000006196_46315cztM0_level2.fits | modeM0/AS1T05_200T01_9000006196_46315cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,552,000 | 110,810,880 |
| Size | 452.6 MB | 105.7 MB |
| Events in quadrant A | 5,884,625 | 742,321 |
| Events in quadrant B | 3,655,606 | 774,747 |
| Events in quadrant C | 3,105,146 | 732,591 |
| Events in quadrant D | 4,427,038 | 661,873 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21175 | 3 |
| B | 0 | 14894 | 1 |
| C | 0 | 13531 | 1 |
| D | 0 | 17370 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6366 | 250 | 3.927113% |
| B | 6367 | 178 | 2.795665% |
| C | 6368 | 107 | 1.680276% |
| D | 6368 | 271 | 4.255653% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7482 | 6368 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7482 | 6368 | 33 | 33 | 0.44% | 0.52% |  |
| C | 7483 | 6369 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7483 | 6369 | 121 | 121 | 1.62% | 1.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2901503 | 18174.18 | 765 | 749 | 159.6 |
| A | 13 | 254 | 11728 | 68.78 | 765 | 749 | 159.6 |
| A | 2 | 79 | 9743 | 56.35 | 765 | 749 | 159.6 |
| B | 5 | 255 | 179963 | 1207.2 | 760 | 736 | 148.5 |
| B | 3 | 112 | 141121 | 945.58 | 760 | 736 | 148.5 |
| B | 8 | 234 | 82883 | 553.31 | 760 | 736 | 148.5 |
| C | 11 | 16 | 80561 | 456.89 | 746 | 751 | 174.7 |
| C | 1 | 3 | 49258 | 277.69 | 746 | 751 | 174.7 |
| C | 12 | 2 | 42865 | 241.09 | 746 | 751 | 174.7 |
| D | 1 | 52 | 946323 | 5153.06 | 742 | 719 | 183.5 |
| D | 2 | 249 | 342887 | 1864.64 | 742 | 719 | 183.5 |
| D | 13 | 249 | 145049 | 786.52 | 742 | 719 | 183.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

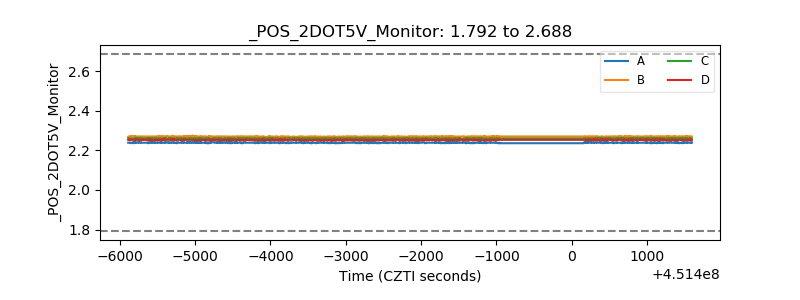

| +2.5 Volts monitor |  |

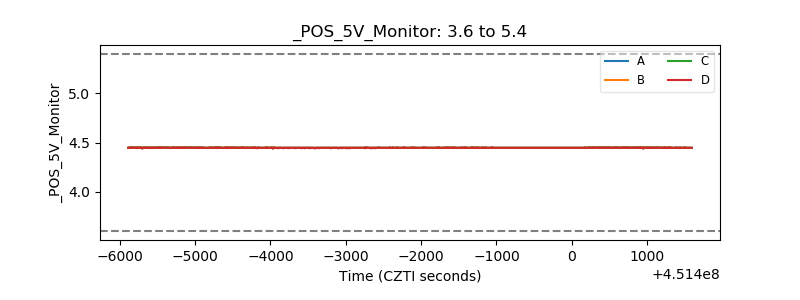

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
