| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_200T01_9000006196_46323cztM0_level2.fits | modeM0/AS1T05_200T01_9000006196_46323cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,191,159,360 | 178,254,720 |
| Size | 1.1 GB | 170.0 MB |
| Events in quadrant A | 22,078,284 | 622,441 |
| Events in quadrant B | 7,814,271 | 1,378,113 |
| Events in quadrant C | 5,604,972 | 1,316,293 |
| Events in quadrant D | 7,585,162 | 1,179,645 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 264 | 0 |
| B | 0 | 264 | 0 |
| C | 0 | 264 | 0 |
| D | 0 | 264 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74364 | 2 |
| B | 0 | 31734 | 2 |
| C | 0 | 26705 | 2 |
| D | 0 | 31906 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13030 | 7368 | 56.546431% |
| B | 13029 | 333 | 2.555837% |
| C | 13029 | 35 | 0.268632% |
| D | 13029 | 434 | 3.331031% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14079 | 13030 | 4462 | 4462 | 31.69% | 34.24% |  |
| B | 14079 | 13030 | 181 | 181 | 1.29% | 1.39% |  |
| C | 14079 | 13031 | 13 | 13 | 0.09% | 0.10% |  |
| D | 14079 | 13031 | 293 | 293 | 2.08% | 2.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 15398863 | 88971.19 | 830 | 813 | 173.1 |
| A | 10 | 83 | 3342175 | 19306.66 | 830 | 813 | 173.1 |
| A | 15 | 239 | 63739 | 363.59 | 830 | 813 | 173.1 |
| B | 3 | 112 | 1298807 | 4667.53 | 1406 | 1361 | 278.0 |
| B | 8 | 234 | 604731 | 2170.61 | 1406 | 1361 | 278.0 |
| B | 5 | 172 | 153784 | 548.34 | 1406 | 1361 | 278.0 |
| C | 3 | 233 | 85284 | 258.3 | 1388 | 1394 | 324.8 |
| C | 12 | 2 | 49629 | 148.52 | 1388 | 1394 | 324.8 |
| C | 1 | 3 | 29894 | 87.75 | 1388 | 1394 | 324.8 |
| D | 1 | 52 | 1154392 | 3363.61 | 1365 | 1322 | 342.8 |
| D | 13 | 249 | 430840 | 1252.94 | 1365 | 1322 | 342.8 |
| D | 13 | 171 | 241883 | 701.74 | 1365 | 1322 | 342.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

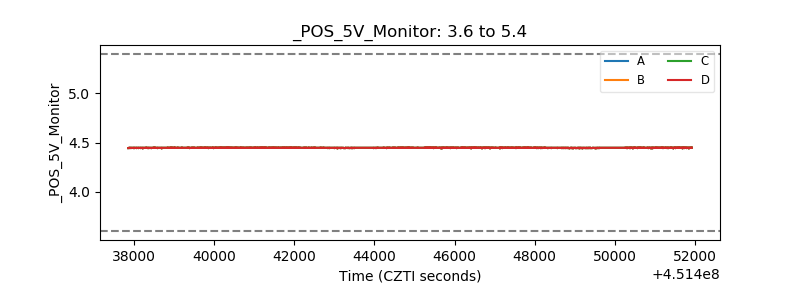

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
