| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_200T01_9000006196_46332cztM0_level2.fits | modeM0/AS1T05_200T01_9000006196_46332cztM0_level2_quad_clean.evt |
| Size (bytes) | 765,504,000 | 91,679,040 |
| Size | 730.0 MB | 87.4 MB |
| Events in quadrant A | 14,355,405 | 248,592 |
| Events in quadrant B | 5,525,503 | 736,405 |
| Events in quadrant C | 2,981,216 | 723,944 |
| Events in quadrant D | 4,948,506 | 594,470 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47281 | 5 |
| B | 0 | 21183 | 1 |
| C | 0 | 14058 | 1 |
| D | 0 | 19680 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6774 | 4910 | 72.483023% |
| B | 6774 | 413 | 6.096841% |
| C | 6775 | 57 | 0.841328% |
| D | 6775 | 766 | 11.306273% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7474 | 6775 | 3671 | 3671 | 49.12% | 54.18% |  |
| B | 7474 | 6775 | 184 | 184 | 2.46% | 2.72% |  |
| C | 7475 | 6776 | 10 | 10 | 0.13% | 0.15% |  |
| D | 7475 | 6776 | 638 | 638 | 8.54% | 9.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 10236047 | 102131.28 | 482 | 472 | 100.2 |
| A | 10 | 83 | 1910462 | 19058.01 | 482 | 472 | 100.2 |
| A | 9 | 191 | 311727 | 3105.72 | 482 | 472 | 100.2 |
| B | 3 | 112 | 1728329 | 11632.31 | 750 | 727 | 148.5 |
| B | 5 | 172 | 329341 | 2212.63 | 750 | 727 | 148.5 |
| B | 8 | 234 | 279312 | 1875.77 | 750 | 727 | 148.5 |
| C | 12 | 2 | 56910 | 320.62 | 742 | 745 | 175.2 |
| C | 12 | 249 | 14198 | 76.8 | 742 | 745 | 175.2 |
| C | 1 | 3 | 13902 | 75.11 | 742 | 745 | 175.2 |
| D | 13 | 249 | 2022622 | 11963.53 | 677 | 656 | 169.0 |
| D | 12 | 128 | 80131 | 470.24 | 677 | 656 | 169.0 |
| D | 1 | 232 | 68969 | 404.19 | 677 | 656 | 169.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

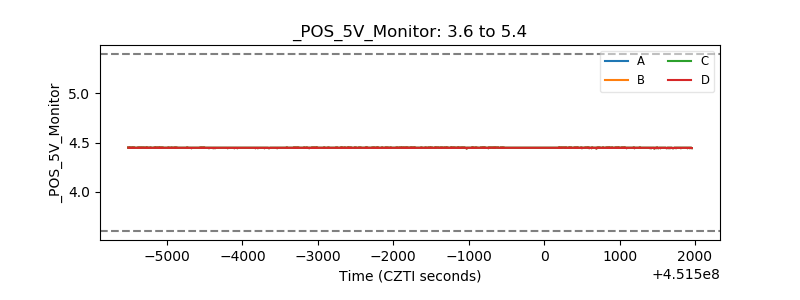

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
