| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_070T05_9000006198_46348cztM0_level2.fits | modeM0/AS1A13_070T05_9000006198_46348cztM0_level2_quad_clean.evt |
| Size (bytes) | 645,301,440 | 103,608,000 |
| Size | 615.4 MB | 98.8 MB |
| Events in quadrant A | 9,666,065 | 461,742 |
| Events in quadrant B | 3,963,285 | 786,425 |
| Events in quadrant C | 4,019,221 | 739,078 |
| Events in quadrant D | 5,674,060 | 644,685 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33790 | 0 |
| B | 0 | 16933 | 0 |
| C | 0 | 17338 | 0 |
| D | 0 | 21999 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7256 | 3184 | 43.880926% |
| B | 7257 | 191 | 2.631942% |
| C | 7257 | 290 | 3.996142% |
| D | 7257 | 710 | 9.783657% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7256 | 7255 | 1332 | 1332 | 18.36% | 18.36% |  |
| B | 7257 | 7257 | 95 | 95 | 1.31% | 1.31% |  |
| C | 7257 | 7257 | 268 | 268 | 3.69% | 3.69% |  |
| D | 7257 | 7257 | 547 | 547 | 7.54% | 7.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 5249762 | 44821.7 | 551 | 538 | 117.1 |
| A | 10 | 83 | 2206111 | 18832.79 | 551 | 538 | 117.1 |
| A | 7 | 3 | 29595 | 248.11 | 551 | 538 | 117.1 |
| B | 5 | 172 | 356232 | 2242.7 | 804 | 779 | 158.5 |
| B | 15 | 201 | 230224 | 1447.66 | 804 | 779 | 158.5 |
| B | 4 | 171 | 42991 | 266.33 | 804 | 779 | 158.5 |
| C | 9 | 54 | 659445 | 3609.41 | 776 | 779 | 182.5 |
| C | 12 | 2 | 220397 | 1203.48 | 776 | 779 | 182.5 |
| C | 12 | 249 | 50436 | 272.11 | 776 | 779 | 182.5 |
| D | 12 | 1 | 1625413 | 8355.64 | 765 | 738 | 194.4 |
| D | 1 | 52 | 334906 | 1718.61 | 765 | 738 | 194.4 |
| D | 5 | 235 | 223342 | 1144.84 | 765 | 738 | 194.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

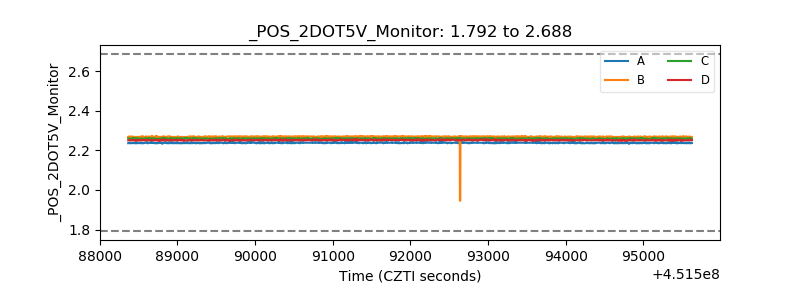

| +2.5 Volts monitor |  |

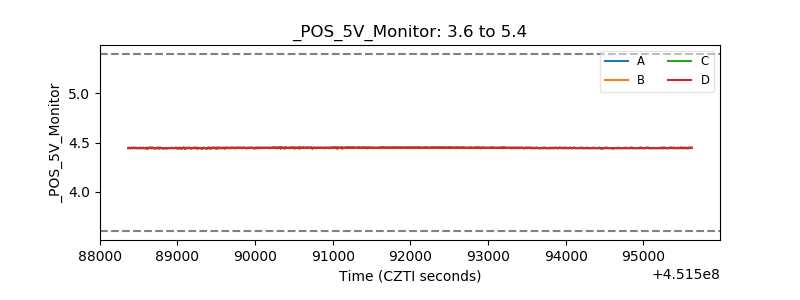

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
