| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_070T05_9000006198_46349cztM0_level2.fits | modeM0/AS1A13_070T05_9000006198_46349cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,065,280 | 124,128,000 |
| Size | 675.3 MB | 118.4 MB |
| Events in quadrant A | 7,724,260 | 853,682 |
| Events in quadrant B | 4,346,128 | 879,698 |
| Events in quadrant C | 6,356,742 | 751,148 |
| Events in quadrant D | 7,157,906 | 712,534 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28583 | 0 |
| B | 0 | 18623 | 1 |
| C | 0 | 24638 | 0 |
| D | 0 | 26948 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8079 | 172 | 2.128976% |
| B | 8079 | 128 | 1.584354% |
| C | 8079 | 1029 | 12.736725% |
| D | 8079 | 851 | 10.533482% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8079 | 8079 | 43 | 43 | 0.53% | 0.53% |  |
| B | 8079 | 8079 | 55 | 55 | 0.68% | 0.68% |  |
| C | 8079 | 8078 | 937 | 937 | 11.60% | 11.60% |  |
| D | 8079 | 8079 | 679 | 679 | 8.40% | 8.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3899174 | 20726.25 | 899 | 877 | 188.1 |
| A | 15 | 223 | 93068 | 490.16 | 899 | 877 | 188.1 |
| A | 7 | 3 | 74952 | 393.84 | 899 | 877 | 188.1 |
| B | 15 | 201 | 243885 | 1358.57 | 902 | 874 | 178.9 |
| B | 5 | 172 | 220615 | 1228.48 | 902 | 874 | 178.9 |
| B | 0 | 190 | 71652 | 395.69 | 902 | 874 | 178.9 |
| C | 9 | 54 | 2835343 | 14627.26 | 826 | 828 | 193.8 |
| C | 12 | 2 | 186650 | 958.92 | 826 | 828 | 193.8 |
| C | 12 | 249 | 33862 | 170.47 | 826 | 828 | 193.8 |
| D | 12 | 1 | 1446709 | 6689.52 | 857 | 829 | 216.1 |
| D | 1 | 52 | 762814 | 3525.41 | 857 | 829 | 216.1 |
| D | 2 | 37 | 356353 | 1644.87 | 857 | 829 | 216.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

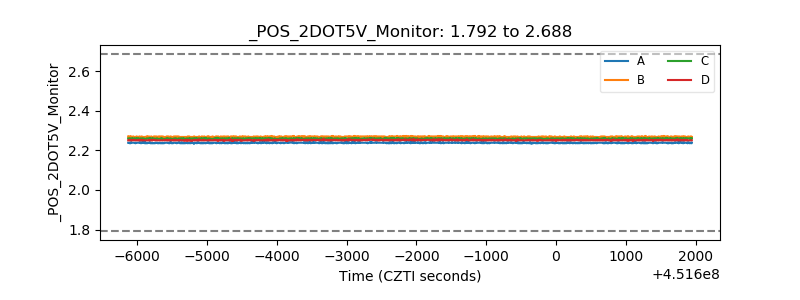

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
