| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_070T05_9000006198_46361cztM0_level2.fits | modeM0/AS1A13_070T05_9000006198_46361cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,793,280 | 102,591,360 |
| Size | 496.7 MB | 97.8 MB |
| Events in quadrant A | 7,683,023 | 632,334 |
| Events in quadrant B | 3,769,937 | 706,556 |
| Events in quadrant C | 3,059,922 | 689,387 |
| Events in quadrant D | 4,263,621 | 626,752 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27084 | 1 |
| B | 0 | 15619 | 1 |
| C | 0 | 13907 | 1 |
| D | 0 | 17263 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6465 | 870 | 13.457077% |
| B | 6466 | 248 | 3.835447% |
| C | 6466 | 80 | 1.237241% |
| D | 6466 | 185 | 2.861120% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7195 | 6466 | 500 | 500 | 6.95% | 7.73% |  |
| B | 7196 | 6467 | 91 | 91 | 1.26% | 1.41% |  |
| C | 7196 | 6467 | 25 | 25 | 0.35% | 0.39% |  |
| D | 7196 | 6467 | 73 | 73 | 1.01% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3065343 | 21170.92 | 698 | 684 | 144.8 |
| A | 15 | 223 | 1593704 | 11004.71 | 698 | 684 | 144.8 |
| A | 13 | 248 | 237989 | 1639.32 | 698 | 684 | 144.8 |
| B | 5 | 172 | 338341 | 2383.14 | 714 | 694 | 141.7 |
| B | 5 | 255 | 164907 | 1159.03 | 714 | 694 | 141.7 |
| B | 3 | 112 | 120555 | 845.99 | 714 | 694 | 141.7 |
| C | 12 | 2 | 135477 | 791.44 | 717 | 721 | 170.3 |
| C | 14 | 254 | 95119 | 554.41 | 717 | 721 | 170.3 |
| C | 11 | 16 | 16665 | 93.64 | 717 | 721 | 170.3 |
| D | 1 | 52 | 993374 | 5516.25 | 715 | 693 | 180.0 |
| D | 5 | 235 | 87202 | 480.72 | 715 | 693 | 180.0 |
| D | 5 | 171 | 79963 | 440.5 | 715 | 693 | 180.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

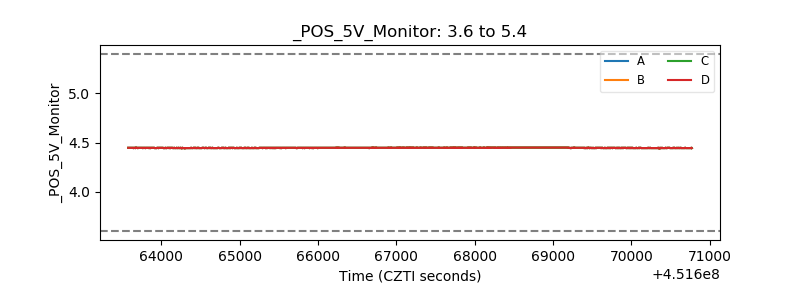

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
