| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_070T05_9000006198_46363cztM0_level2.fits | modeM0/AS1A13_070T05_9000006198_46363cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,776,000 | 116,801,280 |
| Size | 573.9 MB | 111.4 MB |
| Events in quadrant A | 7,633,255 | 749,635 |
| Events in quadrant B | 4,627,260 | 792,137 |
| Events in quadrant C | 3,553,251 | 782,393 |
| Events in quadrant D | 5,890,470 | 699,012 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27596 | 1 |
| B | 0 | 18914 | 1 |
| C | 0 | 16023 | 1 |
| D | 0 | 22645 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7379 | 537 | 7.277409% |
| B | 7380 | 391 | 5.298103% |
| C | 7380 | 62 | 0.840108% |
| D | 7380 | 293 | 3.970190% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7524 | 7380 | 237 | 237 | 3.15% | 3.21% |  |
| B | 7525 | 7381 | 176 | 176 | 2.34% | 2.38% |  |
| C | 7525 | 7381 | 34 | 34 | 0.45% | 0.46% |  |
| D | 7525 | 7381 | 205 | 205 | 2.72% | 2.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3532074 | 20576.76 | 820 | 801 | 171.6 |
| A | 15 | 223 | 724392 | 4216.37 | 820 | 801 | 171.6 |
| A | 13 | 248 | 122118 | 706.92 | 820 | 801 | 171.6 |
| B | 5 | 172 | 327105 | 1992.67 | 823 | 799 | 163.8 |
| B | 0 | 246 | 200178 | 1217.56 | 823 | 799 | 163.8 |
| B | 8 | 234 | 157071 | 954.32 | 823 | 799 | 163.8 |
| C | 12 | 2 | 200606 | 1026.98 | 822 | 827 | 194.5 |
| C | 14 | 254 | 110598 | 564.28 | 822 | 827 | 194.5 |
| C | 3 | 233 | 26594 | 132.46 | 822 | 827 | 194.5 |
| D | 1 | 52 | 1665746 | 8175.35 | 812 | 788 | 203.7 |
| D | 12 | 1 | 410229 | 2010.45 | 812 | 788 | 203.7 |
| D | 13 | 249 | 129885 | 633.9 | 812 | 788 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

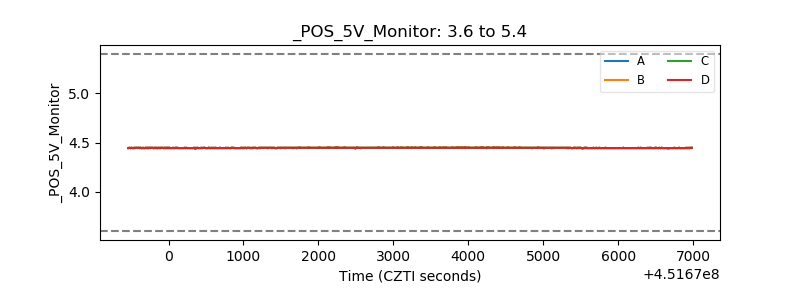

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
