| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_068T02_9000006200_46364cztM0_level2.fits | modeM0/AS1A13_068T02_9000006200_46364cztM0_level2_quad_clean.evt |
| Size (bytes) | 642,162,240 | 125,328,960 |
| Size | 612.4 MB | 119.5 MB |
| Events in quadrant A | 7,158,878 | 842,434 |
| Events in quadrant B | 4,606,167 | 853,286 |
| Events in quadrant C | 5,623,905 | 806,699 |
| Events in quadrant D | 5,769,354 | 741,847 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26661 | 1 |
| B | 0 | 19161 | 0 |
| C | 0 | 22379 | 0 |
| D | 0 | 22734 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7915 | 101 | 1.276058% |
| B | 7916 | 145 | 1.831733% |
| C | 7916 | 360 | 4.547751% |
| D | 7916 | 411 | 5.192016% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7915 | 7915 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7916 | 7916 | 78 | 78 | 0.99% | 0.99% |  |
| C | 7916 | 7916 | 303 | 303 | 3.83% | 3.83% |  |
| D | 7916 | 7916 | 264 | 264 | 3.34% | 3.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3519704 | 19084.03 | 880 | 862 | 184.4 |
| A | 0 | 247 | 109129 | 587.17 | 880 | 862 | 184.4 |
| A | 0 | 243 | 28651 | 150.71 | 880 | 862 | 184.4 |
| B | 5 | 172 | 329353 | 1874.66 | 875 | 849 | 175.2 |
| B | 0 | 189 | 248959 | 1415.88 | 875 | 849 | 175.2 |
| B | 5 | 255 | 209235 | 1189.19 | 875 | 849 | 175.2 |
| C | 14 | 254 | 1558078 | 7788.35 | 854 | 858 | 199.9 |
| C | 4 | 254 | 622074 | 3106.98 | 854 | 858 | 199.9 |
| C | 12 | 249 | 55881 | 275.19 | 854 | 858 | 199.9 |
| D | 1 | 52 | 1933761 | 9009.6 | 854 | 827 | 214.5 |
| D | 13 | 249 | 100919 | 466.54 | 854 | 827 | 214.5 |
| D | 12 | 1 | 66521 | 306.21 | 854 | 827 | 214.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

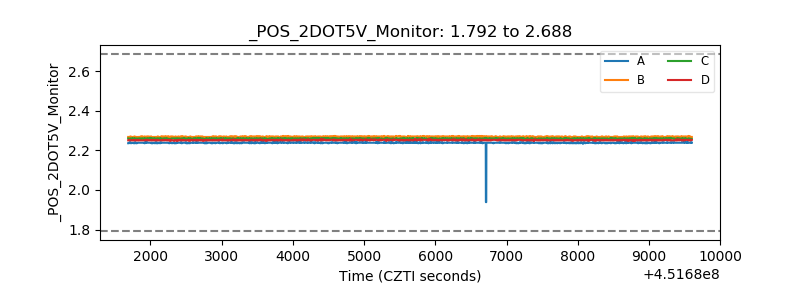

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
