| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_068T02_9000006200_46367cztM0_level2.fits | modeM0/AS1A13_068T02_9000006200_46367cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,503,414,720 | 288,233,280 |
| Size | 1.4 GB | 274.9 MB |
| Events in quadrant A | 17,826,151 | 1,873,413 |
| Events in quadrant B | 10,606,524 | 1,966,111 |
| Events in quadrant C | 9,973,962 | 1,914,768 |
| Events in quadrant D | 15,784,296 | 1,667,313 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 0 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 65621 | 3 |
| B | 0 | 44566 | 3 |
| C | 0 | 43213 | 3 |
| D | 0 | 60291 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18925 | 883 | 4.665786% |
| B | 18926 | 521 | 2.752827% |
| C | 18926 | 254 | 1.342069% |
| D | 18925 | 1662 | 8.782034% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20445 | 18929 | 403 | 403 | 1.97% | 2.13% |  |
| B | 20446 | 18930 | 229 | 229 | 1.12% | 1.21% |  |
| C | 20446 | 18930 | 132 | 132 | 0.65% | 0.70% |  |
| D | 20445 | 18929 | 1210 | 1210 | 5.92% | 6.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8381452 | 19693.18 | 2056 | 2008 | 425.5 |
| A | 15 | 223 | 1341396 | 3147.8 | 2056 | 2008 | 425.5 |
| A | 0 | 243 | 43812 | 98.25 | 2056 | 2008 | 425.5 |
| B | 5 | 255 | 1051549 | 2554.32 | 2073 | 2005 | 410.9 |
| B | 5 | 172 | 543000 | 1316.64 | 2073 | 2005 | 410.9 |
| B | 0 | 189 | 276225 | 667.38 | 2073 | 2005 | 410.9 |
| C | 14 | 254 | 1751607 | 3626.94 | 2056 | 2066 | 482.4 |
| C | 12 | 2 | 103370 | 210.01 | 2056 | 2066 | 482.4 |
| C | 2 | 14 | 27964 | 53.69 | 2056 | 2066 | 482.4 |
| D | 1 | 52 | 5291798 | 10592.73 | 1997 | 1940 | 499.4 |
| D | 12 | 233 | 1330440 | 2660.27 | 1997 | 1940 | 499.4 |
| D | 13 | 249 | 453564 | 904.36 | 1997 | 1940 | 499.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

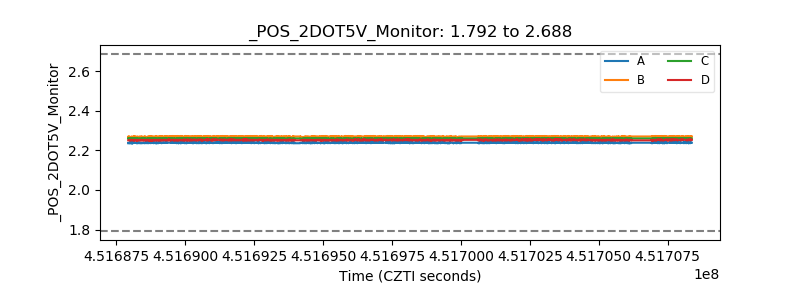

| +2.5 Volts monitor |  |

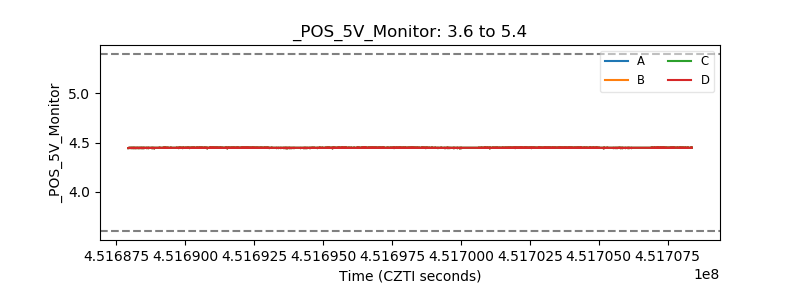

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
