| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_068T02_9000006200_46372cztM0_level2.fits | modeM0/AS1A13_068T02_9000006200_46372cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,021,440 | 114,880,320 |
| Size | 453.0 MB | 109.6 MB |
| Events in quadrant A | 6,180,571 | 769,859 |
| Events in quadrant B | 3,426,783 | 812,197 |
| Events in quadrant C | 3,360,498 | 760,619 |
| Events in quadrant D | 4,111,604 | 682,670 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22198 | 3 |
| B | 0 | 14285 | 3 |
| C | 0 | 14417 | 3 |
| D | 0 | 16468 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6494 | 308 | 4.742840% |
| B | 6494 | 152 | 2.340622% |
| C | 6494 | 134 | 2.063443% |
| D | 6494 | 328 | 5.050816% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7679 | 6496 | 28 | 28 | 0.36% | 0.43% |  |
| B | 7679 | 6496 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7679 | 6496 | 48 | 48 | 0.63% | 0.74% |  |
| D | 7679 | 6496 | 175 | 175 | 2.28% | 2.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2994214 | 18112.88 | 797 | 780 | 165.3 |
| A | 0 | 247 | 49791 | 296.56 | 797 | 780 | 165.3 |
| A | 2 | 79 | 25676 | 150.64 | 797 | 780 | 165.3 |
| B | 5 | 255 | 88338 | 562.0 | 795 | 771 | 155.8 |
| B | 15 | 201 | 83474 | 530.79 | 795 | 771 | 155.8 |
| B | 0 | 190 | 31594 | 197.82 | 795 | 771 | 155.8 |
| C | 14 | 254 | 177663 | 978.58 | 775 | 781 | 180.8 |
| C | 9 | 69 | 103725 | 569.52 | 775 | 781 | 180.8 |
| C | 12 | 249 | 26191 | 140.58 | 775 | 781 | 180.8 |
| D | 5 | 235 | 657434 | 3409.1 | 767 | 744 | 192.6 |
| D | 13 | 249 | 248521 | 1286.29 | 767 | 744 | 192.6 |
| D | 1 | 52 | 108653 | 560.19 | 767 | 744 | 192.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

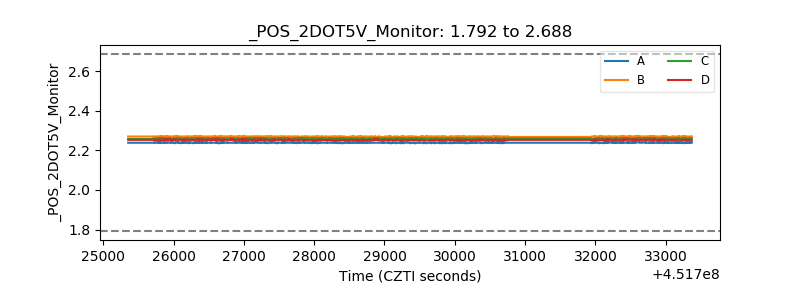

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
