| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_070T06_9000006202_46388cztM0_level2.fits | modeM0/AS1A13_070T06_9000006202_46388cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,604,480 | 116,974,080 |
| Size | 494.6 MB | 111.6 MB |
| Events in quadrant A | 7,702,527 | 719,646 |
| Events in quadrant B | 3,432,056 | 829,809 |
| Events in quadrant C | 3,328,885 | 800,112 |
| Events in quadrant D | 4,205,221 | 718,277 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27041 | 2 |
| B | 0 | 14596 | 2 |
| C | 0 | 14497 | 2 |
| D | 0 | 17111 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6807 | 929 | 13.647716% |
| B | 6807 | 194 | 2.850007% |
| C | 6807 | 98 | 1.439694% |
| D | 6807 | 217 | 3.187895% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7942 | 6808 | 662 | 662 | 8.34% | 9.72% |  |
| B | 7942 | 6808 | 21 | 21 | 0.26% | 0.31% |  |
| C | 7942 | 6808 | 15 | 15 | 0.19% | 0.22% |  |
| D | 7942 | 6808 | 93 | 93 | 1.17% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3104541 | 19257.4 | 783 | 766 | 161.2 |
| A | 0 | 247 | 1448894 | 8984.92 | 783 | 766 | 161.2 |
| A | 0 | 226 | 87050 | 535.35 | 783 | 766 | 161.2 |
| B | 5 | 32 | 179224 | 1128.57 | 810 | 786 | 158.1 |
| B | 0 | 189 | 25108 | 153.83 | 810 | 786 | 158.1 |
| B | 12 | 111 | 20145 | 122.44 | 810 | 786 | 158.1 |
| C | 14 | 254 | 98268 | 526.38 | 799 | 805 | 185.2 |
| C | 12 | 249 | 60540 | 322.62 | 799 | 805 | 185.2 |
| C | 1 | 3 | 33174 | 174.82 | 799 | 805 | 185.2 |
| D | 1 | 52 | 768317 | 3934.21 | 795 | 770 | 195.1 |
| D | 13 | 249 | 283929 | 1451.39 | 795 | 770 | 195.1 |
| D | 13 | 138 | 44913 | 226.26 | 795 | 770 | 195.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

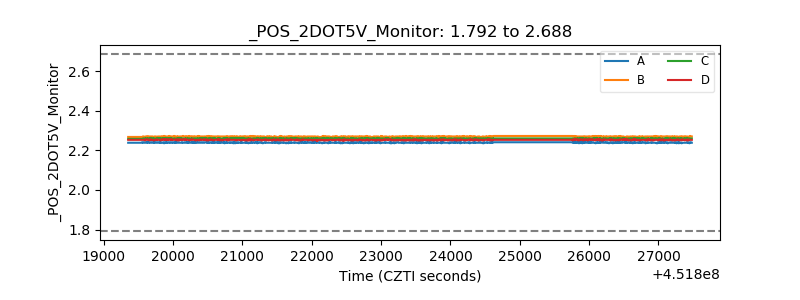

| +2.5 Volts monitor |  |

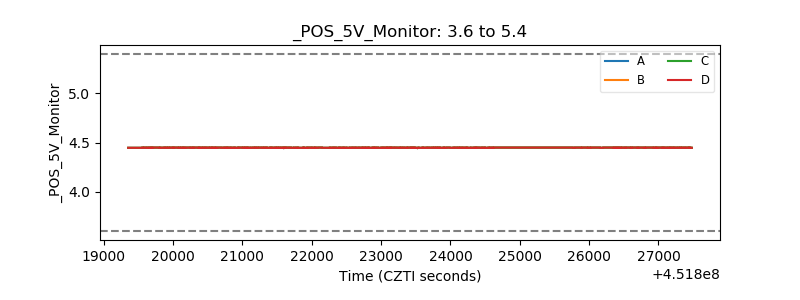

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
