| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_070T04_9000006204_46401cztM0_level2.fits | modeM0/AS1A13_070T04_9000006204_46401cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,560,640 | 110,220,480 |
| Size | 504.1 MB | 105.1 MB |
| Events in quadrant A | 6,425,724 | 748,701 |
| Events in quadrant B | 3,810,021 | 783,013 |
| Events in quadrant C | 3,858,496 | 734,003 |
| Events in quadrant D | 4,973,013 | 623,178 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23257 | 2 |
| B | 0 | 15516 | 2 |
| C | 0 | 15756 | 2 |
| D | 0 | 19133 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6424 | 338 | 5.261519% |
| B | 6424 | 332 | 5.168120% |
| C | 6423 | 275 | 4.281488% |
| D | 6423 | 793 | 12.346256% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7574 | 6425 | 46 | 46 | 0.61% | 0.72% |  |
| B | 7574 | 6424 | 156 | 156 | 2.06% | 2.43% |  |
| C | 7573 | 6424 | 166 | 166 | 2.19% | 2.58% |  |
| D | 7573 | 6424 | 510 | 510 | 6.73% | 7.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3190684 | 20060.4 | 765 | 749 | 159.0 |
| A | 0 | 247 | 207892 | 1302.65 | 765 | 749 | 159.0 |
| A | 13 | 248 | 56391 | 349.91 | 765 | 749 | 159.0 |
| B | 5 | 172 | 343478 | 2317.0 | 761 | 739 | 147.9 |
| B | 4 | 171 | 308538 | 2080.79 | 761 | 739 | 147.9 |
| B | 5 | 255 | 54378 | 362.61 | 761 | 739 | 147.9 |
| C | 14 | 254 | 720213 | 4200.96 | 733 | 738 | 171.3 |
| C | 9 | 54 | 146034 | 848.37 | 733 | 738 | 171.3 |
| C | 12 | 2 | 54784 | 315.57 | 733 | 738 | 171.3 |
| D | 5 | 235 | 1704190 | 9529.06 | 714 | 690 | 178.8 |
| D | 13 | 249 | 196842 | 1097.24 | 714 | 690 | 178.8 |
| D | 2 | 249 | 104871 | 582.77 | 714 | 690 | 178.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

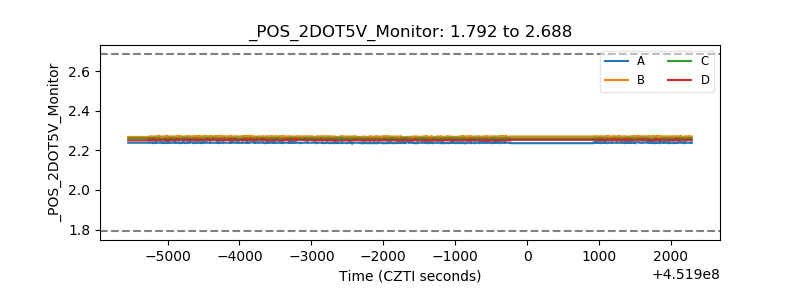

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
