| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_070T04_9000006204_46404cztM0_level2.fits | modeM0/AS1A13_070T04_9000006204_46404cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,826,240 | 109,454,400 |
| Size | 426.1 MB | 104.4 MB |
| Events in quadrant A | 6,127,168 | 721,543 |
| Events in quadrant B | 3,431,609 | 755,218 |
| Events in quadrant C | 2,994,764 | 718,332 |
| Events in quadrant D | 3,472,609 | 657,432 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22434 | 1 |
| B | 0 | 14664 | 5 |
| C | 0 | 13682 | 1 |
| D | 0 | 14946 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6617 | 254 | 3.838598% |
| B | 6616 | 161 | 2.433495% |
| C | 6617 | 70 | 1.057881% |
| D | 6617 | 111 | 1.677497% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7487 | 6619 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7486 | 6618 | 30 | 30 | 0.40% | 0.45% |  |
| C | 7487 | 6619 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7487 | 6619 | 33 | 33 | 0.44% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3190282 | 20861.1 | 739 | 723 | 152.9 |
| A | 13 | 248 | 26940 | 171.47 | 739 | 723 | 152.9 |
| A | 2 | 79 | 18520 | 116.4 | 739 | 723 | 152.9 |
| B | 2 | 2 | 186935 | 1284.77 | 738 | 713 | 144.9 |
| B | 5 | 172 | 146617 | 1006.61 | 738 | 713 | 144.9 |
| B | 4 | 171 | 89997 | 615.98 | 738 | 713 | 144.9 |
| C | 9 | 54 | 70289 | 408.12 | 731 | 734 | 170.4 |
| C | 14 | 254 | 29785 | 170.46 | 731 | 734 | 170.4 |
| C | 1 | 3 | 23687 | 134.68 | 731 | 734 | 170.4 |
| D | 1 | 52 | 138621 | 751.14 | 732 | 707 | 183.6 |
| D | 5 | 235 | 119347 | 646.17 | 732 | 707 | 183.6 |
| D | 13 | 171 | 110226 | 596.49 | 732 | 707 | 183.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

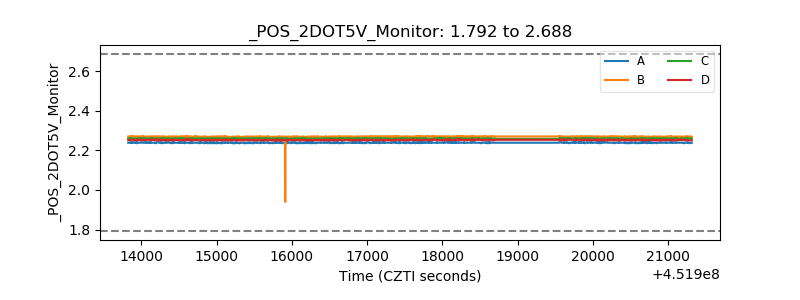

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
