| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_033T03_9000006206_46415cztM0_level2.fits | modeM0/AS1A13_033T03_9000006206_46415cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,866,880 | 106,041,600 |
| Size | 387.1 MB | 101.1 MB |
| Events in quadrant A | 5,409,383 | 704,897 |
| Events in quadrant B | 2,897,639 | 737,935 |
| Events in quadrant C | 2,860,668 | 705,088 |
| Events in quadrant D | 3,378,261 | 634,361 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19851 | 1 |
| B | 0 | 12625 | 1 |
| C | 0 | 12715 | 2 |
| D | 0 | 14345 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6148 | 135 | 2.195836% |
| B | 6148 | 65 | 1.057254% |
| C | 6147 | 35 | 0.569383% |
| D | 6147 | 207 | 3.367496% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7303 | 6149 | 4 | 4 | 0.05% | 0.07% |  |
| B | 7303 | 6149 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7302 | 6148 | 7 | 7 | 0.10% | 0.11% |  |
| D | 7302 | 6148 | 146 | 146 | 2.00% | 2.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2597357 | 17291.65 | 724 | 710 | 150.2 |
| A | 13 | 254 | 11065 | 68.96 | 724 | 710 | 150.2 |
| A | 0 | 247 | 9431 | 58.08 | 724 | 710 | 150.2 |
| B | 5 | 32 | 18694 | 125.71 | 722 | 700 | 143.1 |
| B | 12 | 111 | 18420 | 123.8 | 722 | 700 | 143.1 |
| B | 11 | 111 | 16898 | 113.17 | 722 | 700 | 143.1 |
| C | 14 | 254 | 63550 | 376.94 | 708 | 712 | 166.7 |
| C | 3 | 233 | 16245 | 93.18 | 708 | 712 | 166.7 |
| C | 8 | 112 | 7988 | 43.65 | 708 | 712 | 166.7 |
| D | 13 | 249 | 462684 | 2655.14 | 702 | 681 | 174.0 |
| D | 2 | 249 | 130876 | 748.23 | 702 | 681 | 174.0 |
| D | 13 | 138 | 49885 | 282.78 | 702 | 681 | 174.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

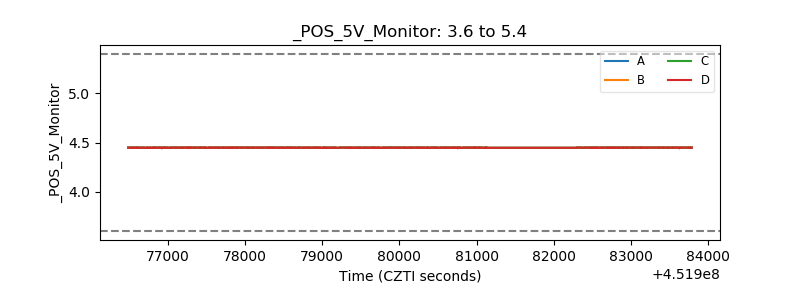

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
