| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_033T03_9000006206_46418cztM0_level2.fits | modeM0/AS1A13_033T03_9000006206_46418cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,397,120 | 112,294,080 |
| Size | 468.6 MB | 107.1 MB |
| Events in quadrant A | 6,128,708 | 750,318 |
| Events in quadrant B | 3,310,540 | 790,929 |
| Events in quadrant C | 3,932,305 | 728,846 |
| Events in quadrant D | 4,298,848 | 664,533 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22327 | 1 |
| B | 0 | 14156 | 1 |
| C | 0 | 16176 | 1 |
| D | 0 | 17439 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6689 | 308 | 4.604575% |
| B | 6689 | 185 | 2.765735% |
| C | 6690 | 363 | 5.426009% |
| D | 6690 | 426 | 6.367713% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7699 | 6689 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7699 | 6689 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7700 | 6690 | 129 | 129 | 1.68% | 1.93% |  |
| D | 7700 | 6690 | 265 | 265 | 3.44% | 3.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2952897 | 17608.33 | 808 | 791 | 167.7 |
| A | 2 | 247 | 23941 | 138.08 | 808 | 791 | 167.7 |
| A | 13 | 254 | 15053 | 85.07 | 808 | 791 | 167.7 |
| B | 0 | 190 | 48816 | 298.21 | 808 | 784 | 161.1 |
| B | 0 | 245 | 43662 | 266.21 | 808 | 784 | 161.1 |
| B | 12 | 111 | 20973 | 125.34 | 808 | 784 | 161.1 |
| C | 14 | 254 | 836021 | 4546.31 | 779 | 784 | 183.7 |
| C | 12 | 2 | 25799 | 136.16 | 779 | 784 | 183.7 |
| C | 3 | 233 | 20657 | 108.17 | 779 | 784 | 183.7 |
| D | 13 | 249 | 613589 | 3165.8 | 784 | 760 | 193.6 |
| D | 2 | 37 | 390153 | 2011.56 | 784 | 760 | 193.6 |
| D | 0 | 240 | 167866 | 863.25 | 784 | 760 | 193.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

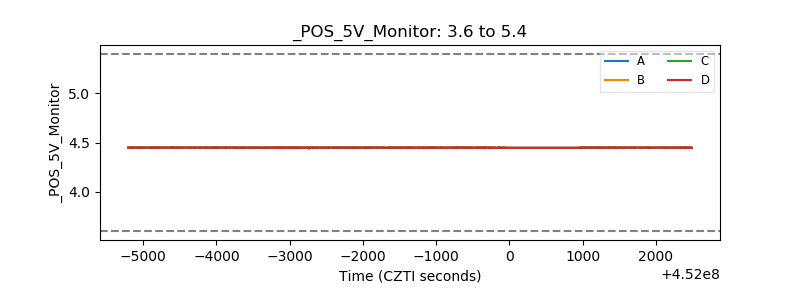

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
