| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_033T03_9000006206_46421cztM0_level2.fits | modeM0/AS1A13_033T03_9000006206_46421cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,194,880 | 141,615,360 |
| Size | 546.6 MB | 135.1 MB |
| Events in quadrant A | 7,576,491 | 925,404 |
| Events in quadrant B | 4,323,378 | 959,011 |
| Events in quadrant C | 4,094,273 | 932,476 |
| Events in quadrant D | 4,539,287 | 859,444 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 176 | 0 |
| B | 0 | 176 | 0 |
| C | 0 | 176 | 0 |
| D | 0 | 176 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27913 | 1 |
| B | 0 | 18888 | 1 |
| C | 0 | 18394 | 1 |
| D | 0 | 19718 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8818 | 415 | 4.706283% |
| B | 8819 | 332 | 3.764599% |
| C | 8819 | 191 | 2.165778% |
| D | 8818 | 223 | 2.528918% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8848 | 8820 | 2 | 2 | 0.02% | 0.02% |  |
| B | 8849 | 8821 | 6 | 6 | 0.07% | 0.07% |  |
| C | 8849 | 8821 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8848 | 8820 | 40 | 40 | 0.45% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3446634 | 15864.94 | 1039 | 1016 | 217.2 |
| A | 0 | 247 | 75315 | 342.1 | 1039 | 1016 | 217.2 |
| A | 15 | 192 | 26171 | 115.82 | 1039 | 1016 | 217.2 |
| B | 0 | 190 | 81306 | 384.17 | 1038 | 1003 | 209.0 |
| B | 0 | 245 | 70503 | 332.49 | 1038 | 1003 | 209.0 |
| B | 12 | 111 | 27640 | 127.43 | 1038 | 1003 | 209.0 |
| C | 9 | 54 | 39399 | 157.24 | 1034 | 1036 | 244.0 |
| C | 3 | 233 | 18917 | 73.29 | 1034 | 1036 | 244.0 |
| C | 13 | 61 | 6838 | 23.78 | 1034 | 1036 | 244.0 |
| D | 13 | 249 | 277093 | 1067.34 | 1035 | 1004 | 258.7 |
| D | 2 | 249 | 104997 | 402.03 | 1035 | 1004 | 258.7 |
| D | 0 | 240 | 63890 | 243.11 | 1035 | 1004 | 258.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

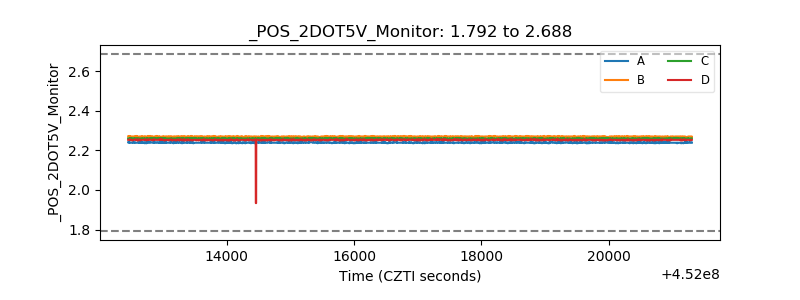

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
