| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T01_9000006208_46426cztM0_level2.fits | modeM0/AS1A13_062T01_9000006208_46426cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,908,480 | 117,178,560 |
| Size | 462.4 MB | 111.8 MB |
| Events in quadrant A | 6,320,440 | 763,725 |
| Events in quadrant B | 3,328,081 | 795,712 |
| Events in quadrant C | 3,367,488 | 774,025 |
| Events in quadrant D | 4,369,335 | 708,202 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23407 | 2 |
| B | 0 | 14974 | 2 |
| C | 0 | 15274 | 2 |
| D | 0 | 18092 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7270 | 179 | 2.462173% |
| B | 7271 | 87 | 1.196534% |
| C | 7271 | 65 | 0.893962% |
| D | 7271 | 164 | 2.255536% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8825 | 7272 | 14 | 14 | 0.16% | 0.19% |  |
| B | 8826 | 7273 | 3 | 3 | 0.03% | 0.04% |  |
| C | 8826 | 7273 | 10 | 10 | 0.11% | 0.14% |  |
| D | 8826 | 7273 | 155 | 155 | 1.76% | 2.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3121949 | 18396.32 | 817 | 799 | 169.7 |
| A | 2 | 79 | 34811 | 200.47 | 817 | 799 | 169.7 |
| A | 13 | 254 | 12330 | 67.96 | 817 | 799 | 169.7 |
| B | 0 | 190 | 46409 | 280.15 | 815 | 789 | 162.8 |
| B | 0 | 189 | 41944 | 252.73 | 815 | 789 | 162.8 |
| B | 12 | 111 | 21637 | 128.03 | 815 | 789 | 162.8 |
| C | 14 | 254 | 129895 | 672.96 | 812 | 815 | 191.8 |
| C | 3 | 233 | 50469 | 258.87 | 812 | 815 | 191.8 |
| C | 10 | 20 | 7001 | 32.25 | 812 | 815 | 191.8 |
| D | 13 | 249 | 940880 | 4656.34 | 804 | 779 | 201.9 |
| D | 8 | 129 | 171123 | 843.72 | 804 | 779 | 201.9 |
| D | 1 | 52 | 93254 | 458.03 | 804 | 779 | 201.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

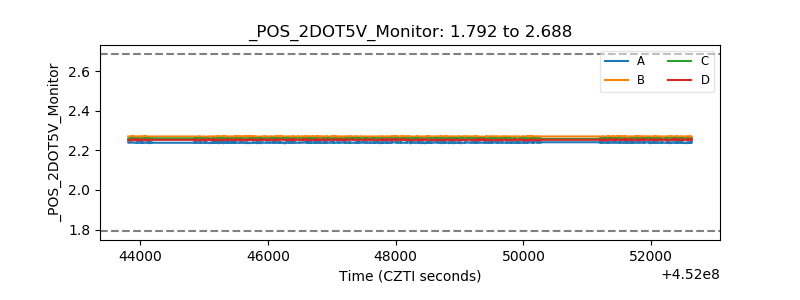

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
