| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T01_9000006208_46431cztM0_level2.fits | modeM0/AS1A13_062T01_9000006208_46431cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,478,080 | 116,346,240 |
| Size | 463.9 MB | 111.0 MB |
| Events in quadrant A | 6,051,323 | 775,635 |
| Events in quadrant B | 3,282,309 | 822,087 |
| Events in quadrant C | 3,421,036 | 777,507 |
| Events in quadrant D | 4,749,505 | 694,841 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22021 | 2 |
| B | 0 | 13756 | 2 |
| C | 0 | 14315 | 2 |
| D | 0 | 18548 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6491 | 292 | 4.498536% |
| B | 6491 | 157 | 2.418734% |
| C | 6491 | 108 | 1.663842% |
| D | 6491 | 386 | 5.946695% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7656 | 6491 | 32 | 32 | 0.42% | 0.49% |  |
| B | 7656 | 6491 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7656 | 6492 | 24 | 24 | 0.31% | 0.37% |  |
| D | 7656 | 6491 | 276 | 276 | 3.61% | 4.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2915269 | 17683.21 | 804 | 789 | 164.8 |
| A | 7 | 3 | 11948 | 67.71 | 804 | 789 | 164.8 |
| A | 13 | 254 | 10325 | 57.86 | 804 | 789 | 164.8 |
| B | 0 | 189 | 75784 | 476.92 | 806 | 782 | 157.3 |
| B | 12 | 111 | 20643 | 126.29 | 806 | 782 | 157.3 |
| B | 0 | 190 | 19792 | 120.88 | 806 | 782 | 157.3 |
| C | 14 | 254 | 241036 | 1292.06 | 791 | 796 | 185.9 |
| C | 3 | 233 | 46859 | 247.74 | 791 | 796 | 185.9 |
| C | 12 | 249 | 40130 | 211.55 | 791 | 796 | 185.9 |
| D | 13 | 249 | 1579053 | 8093.21 | 783 | 761 | 195.0 |
| D | 1 | 52 | 62230 | 315.2 | 783 | 761 | 195.0 |
| D | 11 | 224 | 47486 | 239.6 | 783 | 761 | 195.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

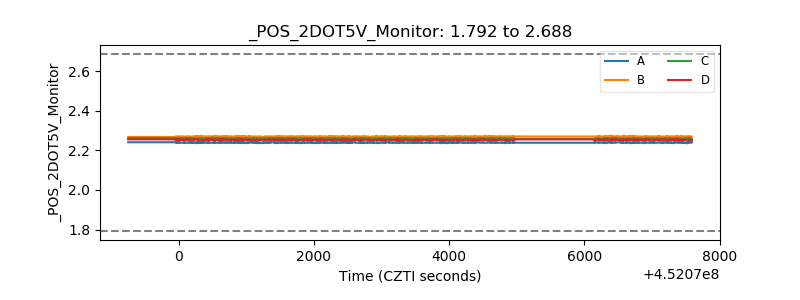

| +2.5 Volts monitor |  |

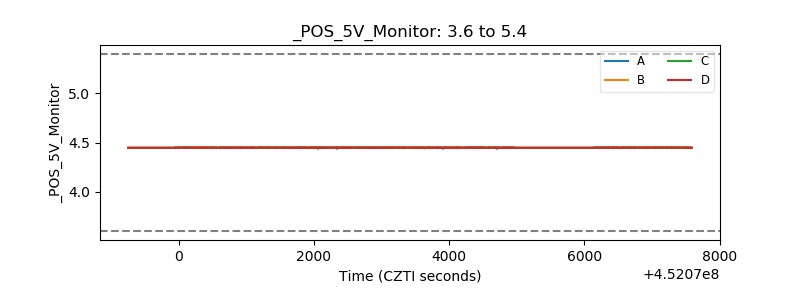

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
