| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T01_9000006208_46432cztM0_level2.fits | modeM0/AS1A13_062T01_9000006208_46432cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,926,720 | 113,333,760 |
| Size | 448.2 MB | 108.1 MB |
| Events in quadrant A | 5,970,725 | 748,704 |
| Events in quadrant B | 3,330,658 | 790,758 |
| Events in quadrant C | 3,260,476 | 756,120 |
| Events in quadrant D | 4,330,533 | 684,632 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21784 | 2 |
| B | 0 | 13927 | 2 |
| C | 0 | 13896 | 2 |
| D | 0 | 17270 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6478 | 339 | 5.233097% |
| B | 6478 | 212 | 3.272615% |
| C | 6478 | 107 | 1.651744% |
| D | 6477 | 286 | 4.415625% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7578 | 6478 | 9 | 9 | 0.12% | 0.14% |  |
| B | 7578 | 6478 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7578 | 6479 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7577 | 6478 | 157 | 157 | 2.07% | 2.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2875156 | 17540.12 | 797 | 784 | 163.9 |
| A | 13 | 254 | 10489 | 59.22 | 797 | 784 | 163.9 |
| A | 3 | 137 | 9159 | 51.11 | 797 | 784 | 163.9 |
| B | 0 | 189 | 94121 | 593.74 | 798 | 774 | 157.2 |
| B | 10 | 128 | 40966 | 255.64 | 798 | 774 | 157.2 |
| B | 0 | 190 | 23913 | 147.18 | 798 | 774 | 157.2 |
| C | 3 | 233 | 71821 | 381.94 | 789 | 795 | 186.0 |
| C | 14 | 254 | 45348 | 239.58 | 789 | 795 | 186.0 |
| C | 9 | 54 | 41195 | 217.25 | 789 | 795 | 186.0 |
| D | 13 | 249 | 1028973 | 5225.7 | 785 | 762 | 196.8 |
| D | 8 | 129 | 137680 | 695.86 | 785 | 762 | 196.8 |
| D | 2 | 249 | 59136 | 296.68 | 785 | 762 | 196.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

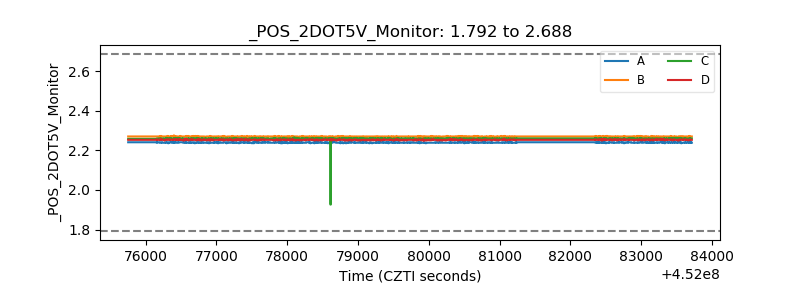

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
