| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T01_9000006208_46435cztM0_level2.fits | modeM0/AS1A13_062T01_9000006208_46435cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,010,560 | 137,502,720 |
| Size | 546.5 MB | 131.1 MB |
| Events in quadrant A | 7,138,581 | 904,970 |
| Events in quadrant B | 4,126,442 | 943,058 |
| Events in quadrant C | 4,646,206 | 901,008 |
| Events in quadrant D | 4,642,824 | 826,810 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26598 | 3 |
| B | 0 | 17986 | 1 |
| C | 0 | 19658 | 1 |
| D | 0 | 19933 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8467 | 327 | 3.862053% |
| B | 8468 | 254 | 2.999528% |
| C | 8468 | 185 | 2.184695% |
| D | 8468 | 256 | 3.023146% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8952 | 8468 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8953 | 8469 | 16 | 16 | 0.18% | 0.19% |  |
| C | 8953 | 8469 | 48 | 48 | 0.54% | 0.57% |  |
| D | 8953 | 8469 | 116 | 116 | 1.30% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3231329 | 15468.76 | 1000 | 978 | 208.8 |
| A | 7 | 3 | 25174 | 115.86 | 1000 | 978 | 208.8 |
| A | 13 | 254 | 12997 | 57.55 | 1000 | 978 | 208.8 |
| B | 0 | 189 | 68187 | 336.28 | 995 | 962 | 199.9 |
| B | 0 | 245 | 65148 | 321.07 | 995 | 962 | 199.9 |
| B | 0 | 190 | 35961 | 175.07 | 995 | 962 | 199.9 |
| C | 14 | 254 | 522051 | 2231.88 | 990 | 992 | 233.5 |
| C | 3 | 233 | 177793 | 757.3 | 990 | 992 | 233.5 |
| C | 1 | 3 | 54843 | 230.66 | 990 | 992 | 233.5 |
| D | 13 | 249 | 687978 | 2815.13 | 987 | 959 | 244.0 |
| D | 2 | 249 | 190539 | 776.82 | 987 | 959 | 244.0 |
| D | 2 | 234 | 39909 | 159.6 | 987 | 959 | 244.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

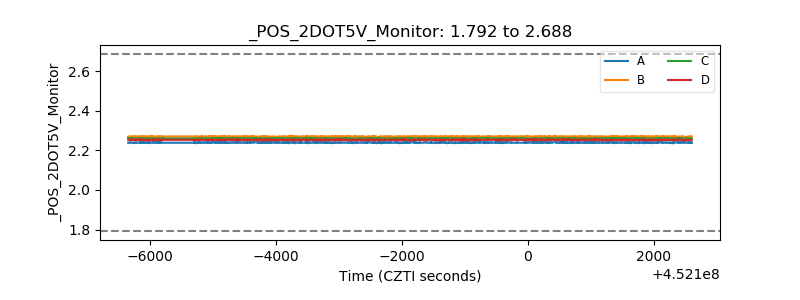

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
