| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T01_9000006208_46445cztM0_level2.fits | modeM0/AS1A13_062T01_9000006208_46445cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,683,520 | 106,545,600 |
| Size | 398.3 MB | 101.6 MB |
| Events in quadrant A | 5,376,146 | 709,631 |
| Events in quadrant B | 3,002,480 | 744,523 |
| Events in quadrant C | 2,832,707 | 708,511 |
| Events in quadrant D | 3,787,789 | 647,641 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19810 | 1 |
| B | 0 | 12573 | 1 |
| C | 0 | 12310 | 1 |
| D | 0 | 15228 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5948 | 189 | 3.177539% |
| B | 5949 | 95 | 1.596907% |
| C | 5949 | 48 | 0.806858% |
| D | 5949 | 149 | 2.504623% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7143 | 5948 | 18 | 18 | 0.25% | 0.30% |  |
| B | 7144 | 5950 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7144 | 5950 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7144 | 5950 | 92 | 92 | 1.29% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2507345 | 16959.45 | 725 | 714 | 147.8 |
| A | 3 | 7 | 46985 | 313.06 | 725 | 714 | 147.8 |
| A | 2 | 79 | 11056 | 69.97 | 725 | 714 | 147.8 |
| B | 0 | 189 | 58474 | 415.33 | 719 | 698 | 139.1 |
| B | 0 | 190 | 58065 | 412.39 | 719 | 698 | 139.1 |
| B | 7 | 219 | 20018 | 138.89 | 719 | 698 | 139.1 |
| C | 3 | 233 | 32016 | 188.76 | 707 | 711 | 165.8 |
| C | 2 | 14 | 23799 | 139.21 | 707 | 711 | 165.8 |
| C | 12 | 249 | 10721 | 60.36 | 707 | 711 | 165.8 |
| D | 13 | 249 | 793021 | 4567.44 | 705 | 685 | 173.5 |
| D | 1 | 52 | 267458 | 1537.82 | 705 | 685 | 173.5 |
| D | 2 | 234 | 28185 | 158.52 | 705 | 685 | 173.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

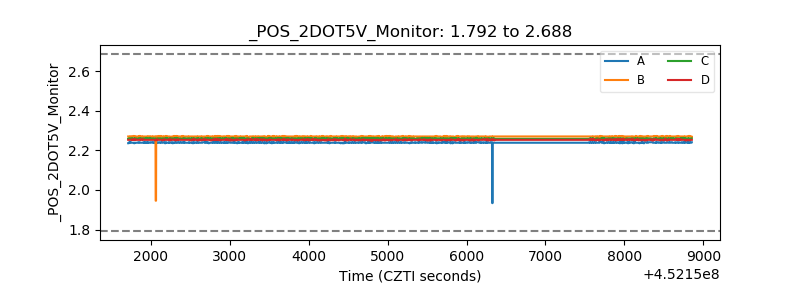

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
