| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T01_9000006208_46446cztM0_level2.fits | modeM0/AS1A13_062T01_9000006208_46446cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,131,200 | 114,353,280 |
| Size | 448.4 MB | 109.1 MB |
| Events in quadrant A | 6,088,407 | 757,285 |
| Events in quadrant B | 3,385,746 | 804,038 |
| Events in quadrant C | 3,216,851 | 764,720 |
| Events in quadrant D | 4,213,425 | 688,583 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22271 | 2 |
| B | 0 | 13948 | 2 |
| C | 0 | 13691 | 3 |
| D | 0 | 16887 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6421 | 334 | 5.201682% |
| B | 6421 | 178 | 2.772154% |
| C | 6420 | 94 | 1.464174% |
| D | 6420 | 291 | 4.532710% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7561 | 6421 | 23 | 23 | 0.30% | 0.36% |  |
| B | 7561 | 6421 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7560 | 6421 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7560 | 6421 | 159 | 159 | 2.10% | 2.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2904975 | 17878.2 | 795 | 782 | 162.4 |
| A | 3 | 7 | 47712 | 288.9 | 795 | 782 | 162.4 |
| A | 2 | 79 | 40622 | 245.25 | 795 | 782 | 162.4 |
| B | 0 | 189 | 142546 | 913.82 | 793 | 770 | 155.1 |
| B | 0 | 190 | 53280 | 338.46 | 793 | 770 | 155.1 |
| B | 7 | 219 | 23002 | 143.3 | 793 | 770 | 155.1 |
| C | 3 | 233 | 132653 | 716.96 | 783 | 788 | 183.9 |
| C | 2 | 14 | 18444 | 96.0 | 783 | 788 | 183.9 |
| C | 14 | 67 | 6670 | 31.98 | 783 | 788 | 183.9 |
| D | 1 | 52 | 1073956 | 5548.29 | 771 | 749 | 193.4 |
| D | 13 | 249 | 145708 | 749.41 | 771 | 749 | 193.4 |
| D | 8 | 176 | 49498 | 252.02 | 771 | 749 | 193.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

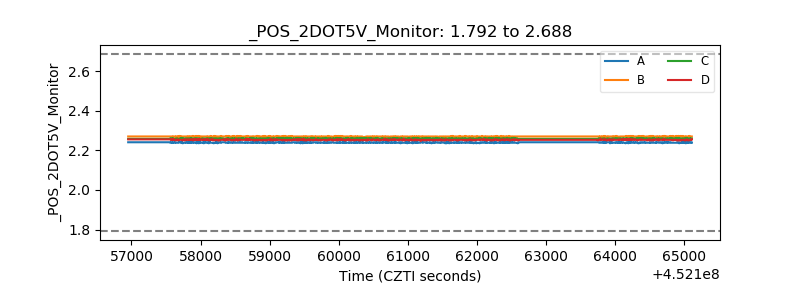

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
