| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006212_46460cztM0_level2.fits | modeM0/AS1A13_037T01_9000006212_46460cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,009,600 | 104,869,440 |
| Size | 432.0 MB | 100.0 MB |
| Events in quadrant A | 5,745,386 | 702,755 |
| Events in quadrant B | 3,102,706 | 736,840 |
| Events in quadrant C | 3,221,167 | 682,038 |
| Events in quadrant D | 4,223,911 | 626,026 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21295 | 1 |
| B | 0 | 13334 | 1 |
| C | 0 | 13976 | 1 |
| D | 0 | 16931 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6129 | 179 | 2.920542% |
| B | 6129 | 90 | 1.468429% |
| C | 6129 | 149 | 2.431065% |
| D | 6130 | 171 | 2.789560% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7314 | 6129 | 8 | 8 | 0.11% | 0.13% |  |
| B | 7314 | 6130 | 30 | 30 | 0.41% | 0.49% |  |
| C | 7314 | 6130 | 117 | 117 | 1.60% | 1.91% |  |
| D | 7315 | 6131 | 150 | 150 | 2.05% | 2.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2913748 | 20255.44 | 700 | 687 | 143.8 |
| A | 15 | 235 | 68227 | 469.63 | 700 | 687 | 143.8 |
| A | 2 | 79 | 20990 | 141.17 | 700 | 687 | 143.8 |
| B | 10 | 128 | 122015 | 890.97 | 702 | 680 | 136.2 |
| B | 5 | 172 | 79977 | 582.28 | 702 | 680 | 136.2 |
| B | 5 | 32 | 37811 | 272.66 | 702 | 680 | 136.2 |
| C | 14 | 254 | 485736 | 3053.26 | 677 | 682 | 158.9 |
| C | 3 | 233 | 51541 | 320.14 | 677 | 682 | 158.9 |
| C | 2 | 14 | 32771 | 201.99 | 677 | 682 | 158.9 |
| D | 8 | 176 | 827854 | 4882.58 | 681 | 662 | 169.4 |
| D | 1 | 52 | 572786 | 3377.02 | 681 | 662 | 169.4 |
| D | 13 | 249 | 50278 | 292.86 | 681 | 662 | 169.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

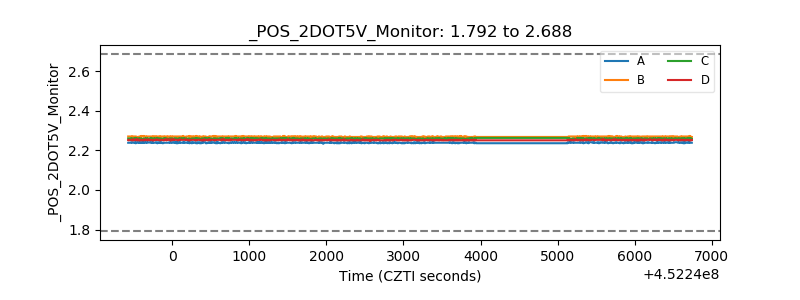

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
