| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_203T01_9000006214_46469cztM0_level2.fits | modeM0/AS1T05_203T01_9000006214_46469cztM0_level2_quad_clean.evt |
| Size (bytes) | 585,241,920 | 115,620,480 |
| Size | 558.1 MB | 110.3 MB |
| Events in quadrant A | 8,239,290 | 745,957 |
| Events in quadrant B | 4,797,676 | 785,922 |
| Events in quadrant C | 3,189,376 | 765,153 |
| Events in quadrant D | 4,861,110 | 685,761 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29409 | 2 |
| B | 0 | 19481 | 2 |
| C | 0 | 15070 | 2 |
| D | 0 | 19763 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7434 | 584 | 7.855798% |
| B | 7434 | 395 | 5.313425% |
| C | 7435 | 14 | 0.188299% |
| D | 7435 | 326 | 4.384667% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8859 | 7436 | 325 | 325 | 3.67% | 4.37% |  |
| B | 8859 | 7436 | 271 | 271 | 3.06% | 3.64% |  |
| C | 8860 | 7437 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8860 | 7437 | 272 | 272 | 3.07% | 3.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3498042 | 20774.06 | 804 | 786 | 168.3 |
| A | 15 | 235 | 926556 | 5499.17 | 804 | 786 | 168.3 |
| A | 0 | 247 | 554999 | 3292.08 | 804 | 786 | 168.3 |
| B | 5 | 185 | 658310 | 4045.91 | 811 | 785 | 162.5 |
| B | 5 | 29 | 545397 | 3351.13 | 811 | 785 | 162.5 |
| B | 10 | 128 | 103810 | 633.94 | 811 | 785 | 162.5 |
| C | 3 | 233 | 18247 | 92.46 | 800 | 804 | 188.7 |
| C | 14 | 254 | 17282 | 87.34 | 800 | 804 | 188.7 |
| C | 9 | 54 | 17027 | 85.99 | 800 | 804 | 188.7 |
| D | 2 | 249 | 698607 | 3535.12 | 786 | 763 | 197.4 |
| D | 8 | 176 | 460531 | 2329.08 | 786 | 763 | 197.4 |
| D | 13 | 249 | 311628 | 1574.77 | 786 | 763 | 197.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

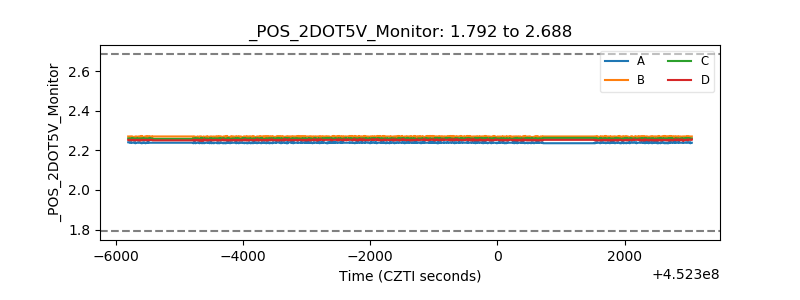

| +2.5 Volts monitor |  |

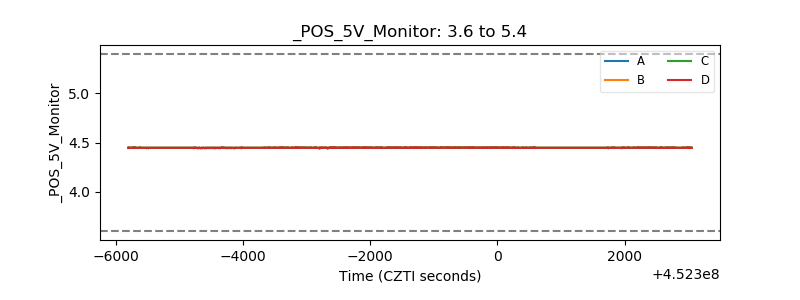

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
