| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_203T01_9000006214_46476cztM0_level2.fits | modeM0/AS1T05_203T01_9000006214_46476cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,805,760 | 112,118,400 |
| Size | 491.0 MB | 106.9 MB |
| Events in quadrant A | 6,593,156 | 741,904 |
| Events in quadrant B | 3,534,255 | 778,884 |
| Events in quadrant C | 3,427,415 | 747,176 |
| Events in quadrant D | 4,987,461 | 664,950 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23662 | 2 |
| B | 0 | 14826 | 3 |
| C | 0 | 14663 | 2 |
| D | 0 | 19302 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6630 | 358 | 5.399698% |
| B | 6629 | 279 | 4.208780% |
| C | 6629 | 149 | 2.247700% |
| D | 6629 | 389 | 5.868155% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7680 | 6630 | 11 | 11 | 0.14% | 0.17% |  |
| B | 7679 | 6629 | 63 | 63 | 0.82% | 0.95% |  |
| C | 7679 | 6629 | 12 | 12 | 0.16% | 0.18% |  |
| D | 7679 | 6629 | 202 | 202 | 2.63% | 3.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3170295 | 19335.26 | 792 | 777 | 163.9 |
| A | 2 | 79 | 247091 | 1502.61 | 792 | 777 | 163.9 |
| A | 15 | 235 | 52367 | 314.72 | 792 | 777 | 163.9 |
| B | 5 | 32 | 300920 | 1898.34 | 798 | 772 | 158.1 |
| B | 15 | 201 | 20642 | 125.67 | 798 | 772 | 158.1 |
| B | 12 | 111 | 19926 | 121.14 | 798 | 772 | 158.1 |
| C | 3 | 233 | 221084 | 1188.36 | 790 | 793 | 185.4 |
| C | 9 | 54 | 86298 | 461.26 | 790 | 793 | 185.4 |
| C | 14 | 254 | 15290 | 78.2 | 790 | 793 | 185.4 |
| D | 1 | 52 | 1071269 | 5568.22 | 774 | 748 | 192.3 |
| D | 0 | 240 | 344156 | 1786.21 | 774 | 748 | 192.3 |
| D | 13 | 249 | 251080 | 1302.08 | 774 | 748 | 192.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

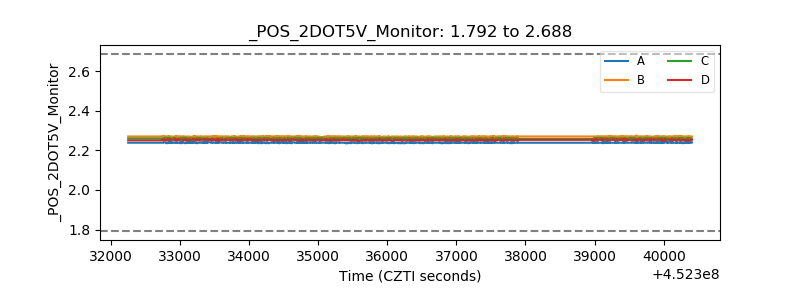

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
