| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_203T01_9000006214_46477cztM0_level2.fits | modeM0/AS1T05_203T01_9000006214_46477cztM0_level2_quad_clean.evt |
| Size (bytes) | 360,181,440 | 77,604,480 |
| Size | 343.5 MB | 74.0 MB |
| Events in quadrant A | 4,459,420 | 515,552 |
| Events in quadrant B | 2,264,687 | 539,723 |
| Events in quadrant C | 2,222,804 | 513,376 |
| Events in quadrant D | 4,019,335 | 450,279 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 94 | 0 |
| B | 0 | 94 | 0 |
| C | 0 | 94 | 0 |
| D | 0 | 94 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15882 | 1 |
| B | 0 | 9990 | 1 |
| C | 0 | 10062 | 1 |
| D | 0 | 15172 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4712 | 137 | 2.907470% |
| B | 4712 | 71 | 1.506791% |
| C | 4712 | 17 | 0.360781% |
| D | 4712 | 307 | 6.515280% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4712 | 4712 | 29 | 29 | 0.62% | 0.62% |  |
| B | 4712 | 4712 | 31 | 31 | 0.66% | 0.66% |  |
| C | 4712 | 4712 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4712 | 4712 | 255 | 255 | 5.41% | 5.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2208801 | 20281.75 | 523 | 512 | 108.9 |
| A | 15 | 235 | 118096 | 1079.94 | 523 | 512 | 108.9 |
| A | 2 | 79 | 78247 | 713.95 | 523 | 512 | 108.9 |
| B | 5 | 172 | 80152 | 768.77 | 524 | 508 | 103.6 |
| B | 5 | 32 | 51230 | 489.6 | 524 | 508 | 103.6 |
| B | 10 | 128 | 31786 | 301.91 | 524 | 508 | 103.6 |
| C | 9 | 54 | 197578 | 1622.38 | 513 | 516 | 121.5 |
| C | 3 | 233 | 21780 | 175.06 | 513 | 516 | 121.5 |
| C | 12 | 249 | 6021 | 45.32 | 513 | 516 | 121.5 |
| D | 1 | 52 | 1355383 | 10703.74 | 501 | 485 | 126.6 |
| D | 2 | 249 | 266887 | 2104.58 | 501 | 485 | 126.6 |
| D | 13 | 249 | 197389 | 1555.55 | 501 | 485 | 126.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

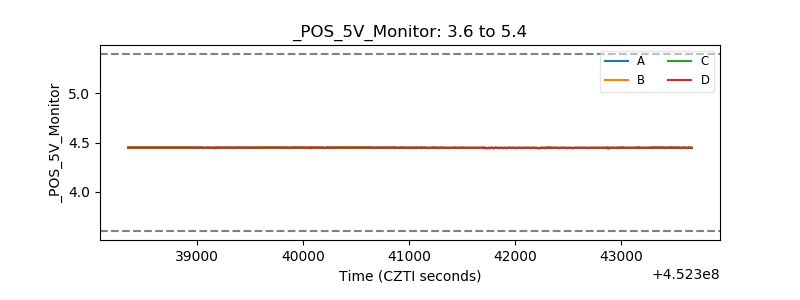

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
