| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006216_46480cztM0_level2.fits | modeM0/AS1A13_037T05_9000006216_46480cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,247,040 | 119,430,720 |
| Size | 576.3 MB | 113.9 MB |
| Events in quadrant A | 7,123,562 | 805,796 |
| Events in quadrant B | 6,592,760 | 734,674 |
| Events in quadrant C | 3,432,769 | 814,855 |
| Events in quadrant D | 4,630,577 | 733,266 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26041 | 0 |
| B | 0 | 24872 | 0 |
| C | 0 | 15559 | 0 |
| D | 0 | 18975 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7581 | 243 | 3.205382% |
| B | 7581 | 1149 | 15.156312% |
| C | 7581 | 5 | 0.065954% |
| D | 7581 | 148 | 1.952249% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7581 | 7581 | 123 | 123 | 1.62% | 1.62% |  |
| B | 7581 | 7581 | 909 | 909 | 11.99% | 11.99% |  |
| C | 7581 | 7581 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7581 | 7581 | 109 | 109 | 1.44% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3367211 | 18757.8 | 853 | 832 | 179.5 |
| A | 13 | 248 | 305030 | 1695.02 | 853 | 832 | 179.5 |
| A | 0 | 247 | 89225 | 492.53 | 853 | 832 | 179.5 |
| B | 10 | 128 | 2960318 | 18243.7 | 810 | 785 | 162.2 |
| B | 5 | 32 | 165133 | 1013.1 | 810 | 785 | 162.2 |
| B | 5 | 255 | 86860 | 530.6 | 810 | 785 | 162.2 |
| C | 3 | 233 | 103870 | 517.99 | 843 | 847 | 198.9 |
| C | 5 | 250 | 17930 | 85.89 | 843 | 847 | 198.9 |
| C | 12 | 249 | 14244 | 67.36 | 843 | 847 | 198.9 |
| D | 1 | 52 | 864760 | 4095.31 | 834 | 808 | 211.0 |
| D | 2 | 249 | 206001 | 972.66 | 834 | 808 | 211.0 |
| D | 13 | 249 | 162764 | 767.71 | 834 | 808 | 211.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

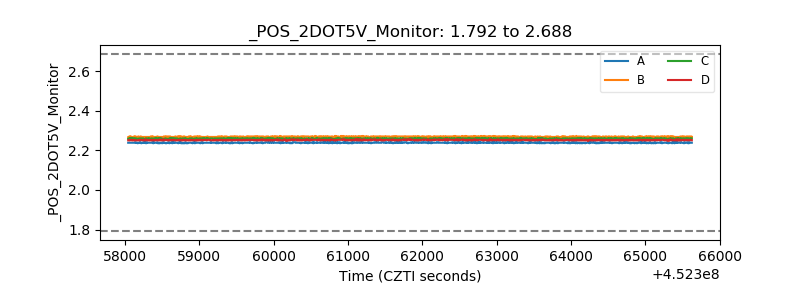

| +2.5 Volts monitor |  |

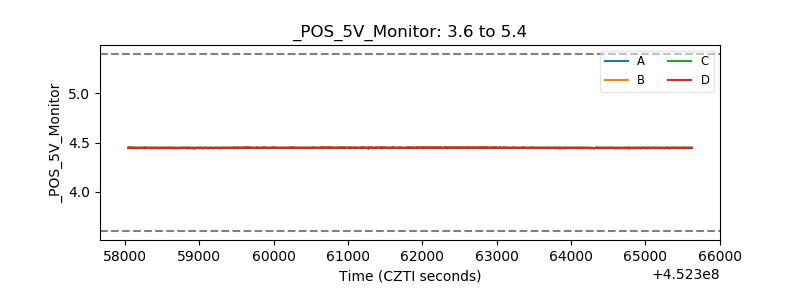

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
