| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006216_46486cztM0_level2.fits | modeM0/AS1A13_037T05_9000006216_46486cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,732,800 | 108,293,760 |
| Size | 453.7 MB | 103.3 MB |
| Events in quadrant A | 5,881,318 | 716,414 |
| Events in quadrant B | 3,606,701 | 746,423 |
| Events in quadrant C | 2,920,408 | 719,407 |
| Events in quadrant D | 4,688,892 | 635,826 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21654 | 1 |
| B | 0 | 15105 | 1 |
| C | 0 | 13501 | 1 |
| D | 0 | 18713 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6611 | 88 | 1.331115% |
| B | 6611 | 67 | 1.013462% |
| C | 6611 | 10 | 0.151263% |
| D | 6611 | 269 | 4.068976% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7626 | 6612 | 14 | 14 | 0.18% | 0.21% |  |
| B | 7626 | 6612 | 39 | 39 | 0.51% | 0.59% |  |
| C | 7626 | 6612 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7626 | 6611 | 247 | 247 | 3.24% | 3.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3019452 | 19681.98 | 733 | 719 | 153.4 |
| A | 13 | 254 | 12449 | 76.48 | 733 | 719 | 153.4 |
| A | 3 | 137 | 8293 | 49.38 | 733 | 719 | 153.4 |
| B | 5 | 32 | 390860 | 2683.18 | 734 | 712 | 145.4 |
| B | 10 | 128 | 127402 | 871.29 | 734 | 712 | 145.4 |
| B | 4 | 170 | 44072 | 298.2 | 734 | 712 | 145.4 |
| C | 9 | 54 | 37100 | 209.67 | 733 | 738 | 173.4 |
| C | 3 | 233 | 15111 | 82.88 | 733 | 738 | 173.4 |
| C | 12 | 2 | 6870 | 35.36 | 733 | 738 | 173.4 |
| D | 1 | 52 | 1260585 | 7072.39 | 713 | 693 | 178.1 |
| D | 13 | 249 | 411977 | 2308.74 | 713 | 693 | 178.1 |
| D | 2 | 249 | 206851 | 1157.27 | 713 | 693 | 178.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

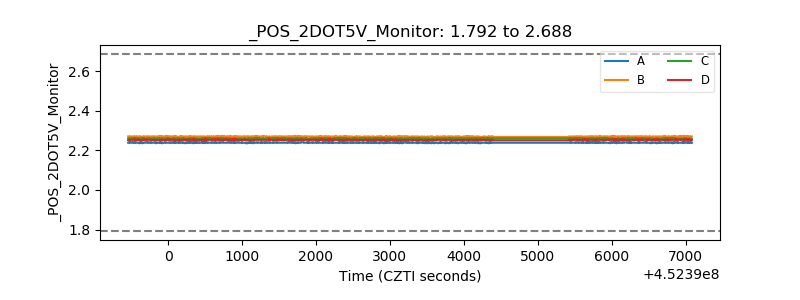

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
