| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006216_46487cztM0_level2.fits | modeM0/AS1A13_037T05_9000006216_46487cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,945,280 | 110,900,160 |
| Size | 472.0 MB | 105.8 MB |
| Events in quadrant A | 6,111,000 | 734,627 |
| Events in quadrant B | 3,544,428 | 771,984 |
| Events in quadrant C | 3,046,981 | 744,285 |
| Events in quadrant D | 5,115,216 | 654,112 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22204 | 2 |
| B | 0 | 14788 | 2 |
| C | 0 | 13526 | 2 |
| D | 0 | 19616 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6494 | 186 | 2.864182% |
| B | 6494 | 100 | 1.539883% |
| C | 6494 | 44 | 0.677549% |
| D | 6494 | 333 | 5.127810% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7574 | 6495 | 18 | 18 | 0.24% | 0.28% |  |
| B | 7574 | 6495 | 29 | 29 | 0.38% | 0.45% |  |
| C | 7574 | 6495 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7574 | 6495 | 270 | 270 | 3.56% | 4.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3150471 | 20308.21 | 751 | 735 | 155.1 |
| A | 13 | 248 | 24695 | 154.48 | 751 | 735 | 155.1 |
| A | 7 | 3 | 11856 | 71.7 | 751 | 735 | 155.1 |
| B | 4 | 171 | 185500 | 1237.74 | 753 | 730 | 149.3 |
| B | 0 | 190 | 145575 | 970.29 | 753 | 730 | 149.3 |
| B | 10 | 128 | 91167 | 605.82 | 753 | 730 | 149.3 |
| C | 9 | 54 | 82321 | 457.26 | 755 | 760 | 178.4 |
| C | 3 | 233 | 8110 | 41.21 | 755 | 760 | 178.4 |
| C | 14 | 67 | 6357 | 31.38 | 755 | 760 | 178.4 |
| D | 1 | 52 | 850691 | 4685.46 | 734 | 714 | 181.4 |
| D | 13 | 249 | 762045 | 4196.8 | 734 | 714 | 181.4 |
| D | 2 | 249 | 280873 | 1544.36 | 734 | 714 | 181.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

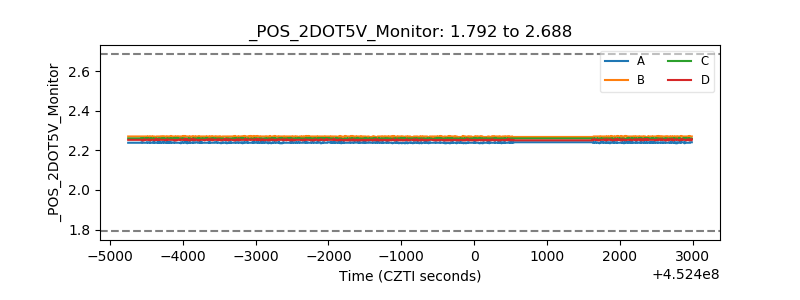

| +2.5 Volts monitor |  |

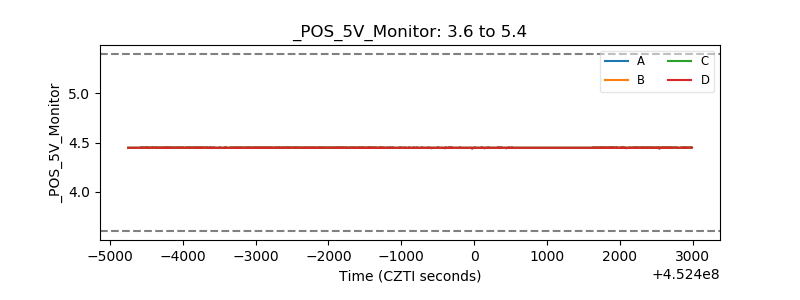

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
