| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_068T05_9000006218_46493cztM0_level2.fits | modeM0/AS1A13_068T05_9000006218_46493cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,529,280 | 116,193,600 |
| Size | 499.3 MB | 110.8 MB |
| Events in quadrant A | 6,193,625 | 775,659 |
| Events in quadrant B | 3,702,250 | 791,032 |
| Events in quadrant C | 3,209,742 | 765,590 |
| Events in quadrant D | 5,713,908 | 683,265 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22391 | 0 |
| B | 0 | 16061 | 0 |
| C | 0 | 14915 | 0 |
| D | 0 | 21973 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7219 | 129 | 1.786951% |
| B | 7219 | 166 | 2.299487% |
| C | 7220 | 15 | 0.207756% |
| D | 7220 | 265 | 3.670360% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7219 | 7219 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7219 | 7219 | 79 | 79 | 1.09% | 1.09% |  |
| C | 7220 | 7220 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7220 | 7220 | 254 | 254 | 3.52% | 3.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3020261 | 17668.55 | 814 | 794 | 170.9 |
| A | 13 | 254 | 13251 | 72.89 | 814 | 794 | 170.9 |
| A | 3 | 137 | 9877 | 53.15 | 814 | 794 | 170.9 |
| B | 7 | 221 | 184020 | 1136.44 | 806 | 779 | 161.2 |
| B | 5 | 172 | 181769 | 1122.48 | 806 | 779 | 161.2 |
| B | 0 | 190 | 26556 | 159.87 | 806 | 779 | 161.2 |
| C | 14 | 254 | 49680 | 260.25 | 801 | 805 | 187.8 |
| C | 3 | 233 | 22947 | 117.9 | 801 | 805 | 187.8 |
| C | 12 | 249 | 11574 | 57.34 | 801 | 805 | 187.8 |
| D | 1 | 52 | 1239856 | 6260.45 | 788 | 763 | 197.9 |
| D | 7 | 80 | 395784 | 1995.82 | 788 | 763 | 197.9 |
| D | 12 | 128 | 291513 | 1469.0 | 788 | 763 | 197.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

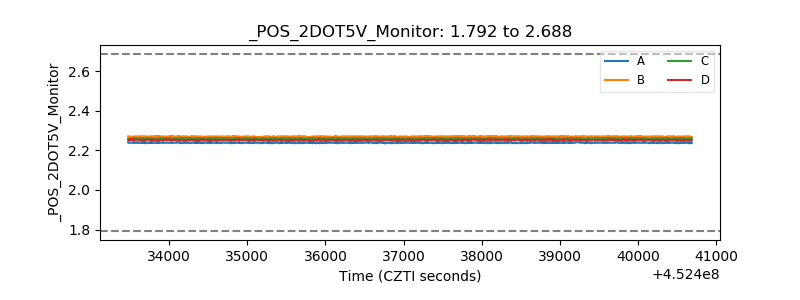

| +2.5 Volts monitor |  |

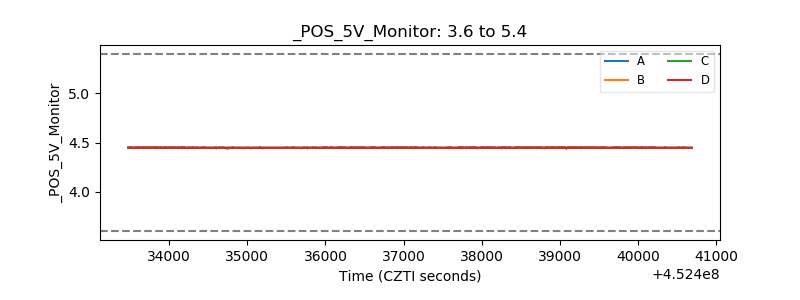

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
