| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_068T06_9000006220_46498cztM0_level2.fits | modeM0/AS1A13_068T06_9000006220_46498cztM0_level2_quad_clean.evt |
| Size (bytes) | 787,230,720 | 168,094,080 |
| Size | 750.8 MB | 160.3 MB |
| Events in quadrant A | 9,343,507 | 1,112,135 |
| Events in quadrant B | 5,394,185 | 1,139,639 |
| Events in quadrant C | 5,215,951 | 1,109,774 |
| Events in quadrant D | 8,363,193 | 990,433 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 216 | 0 |
| B | 0 | 216 | 0 |
| C | 0 | 216 | 0 |
| D | 0 | 216 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34396 | 2 |
| B | 0 | 23275 | 2 |
| C | 0 | 23278 | 2 |
| D | 0 | 32264 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10651 | 250 | 2.347197% |
| B | 10652 | 188 | 1.764927% |
| C | 10651 | 106 | 0.995212% |
| D | 10651 | 552 | 5.182612% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11996 | 10653 | 24 | 24 | 0.20% | 0.23% |  |
| B | 11997 | 10654 | 100 | 100 | 0.83% | 0.94% |  |
| C | 11996 | 10652 | 87 | 87 | 0.73% | 0.82% |  |
| D | 11996 | 10653 | 385 | 385 | 3.21% | 3.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4729659 | 19208.78 | 1181 | 1155 | 246.2 |
| A | 13 | 254 | 18657 | 71.1 | 1181 | 1155 | 246.2 |
| A | 3 | 137 | 14061 | 52.43 | 1181 | 1155 | 246.2 |
| B | 15 | 201 | 360634 | 1536.33 | 1178 | 1138 | 234.0 |
| B | 5 | 255 | 100643 | 425.24 | 1178 | 1138 | 234.0 |
| B | 10 | 128 | 75062 | 315.92 | 1178 | 1138 | 234.0 |
| C | 14 | 254 | 562842 | 2037.62 | 1167 | 1175 | 275.6 |
| C | 1 | 3 | 69868 | 249.21 | 1167 | 1175 | 275.6 |
| C | 9 | 54 | 14610 | 48.74 | 1167 | 1175 | 275.6 |
| D | 1 | 52 | 2431568 | 8414.87 | 1143 | 1108 | 288.8 |
| D | 2 | 37 | 533913 | 1844.71 | 1143 | 1108 | 288.8 |
| D | 12 | 128 | 269355 | 928.74 | 1143 | 1108 | 288.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

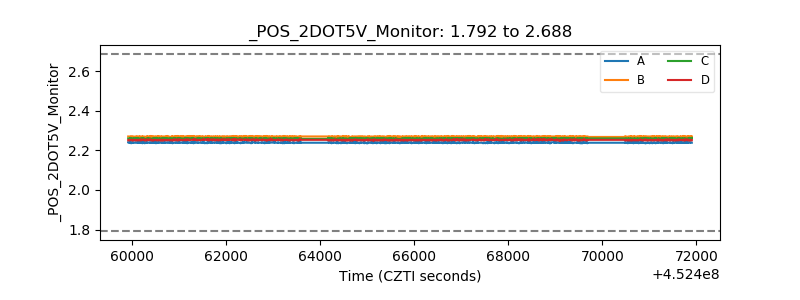

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
