| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_068T06_9000006220_46504cztM0_level2.fits | modeM0/AS1A13_068T06_9000006220_46504cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,022,400 | 110,171,520 |
| Size | 455.9 MB | 105.1 MB |
| Events in quadrant A | 6,045,542 | 739,313 |
| Events in quadrant B | 3,704,698 | 775,436 |
| Events in quadrant C | 3,026,319 | 744,295 |
| Events in quadrant D | 4,424,823 | 633,590 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21756 | 1 |
| B | 0 | 15045 | 1 |
| C | 0 | 13241 | 2 |
| D | 0 | 17420 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6358 | 204 | 3.208556% |
| B | 6359 | 182 | 2.862085% |
| C | 6358 | 23 | 0.361749% |
| D | 6358 | 488 | 7.675370% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7588 | 6359 | 37 | 37 | 0.49% | 0.58% |  |
| B | 7589 | 6360 | 87 | 87 | 1.15% | 1.37% |  |
| C | 7588 | 6359 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7588 | 6358 | 359 | 359 | 4.73% | 5.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3060337 | 19323.46 | 764 | 749 | 158.3 |
| A | 9 | 191 | 11633 | 68.74 | 764 | 749 | 158.3 |
| A | 13 | 254 | 9922 | 57.93 | 764 | 749 | 158.3 |
| B | 0 | 190 | 303728 | 2022.39 | 763 | 739 | 149.8 |
| B | 5 | 255 | 211714 | 1408.22 | 763 | 739 | 149.8 |
| B | 5 | 172 | 109178 | 723.81 | 763 | 739 | 149.8 |
| C | 14 | 254 | 82728 | 464.64 | 749 | 754 | 176.4 |
| C | 1 | 3 | 9610 | 50.2 | 749 | 754 | 176.4 |
| C | 9 | 54 | 8867 | 45.99 | 749 | 754 | 176.4 |
| D | 13 | 249 | 811203 | 4515.56 | 720 | 700 | 179.5 |
| D | 7 | 80 | 492725 | 2741.22 | 720 | 700 | 179.5 |
| D | 1 | 52 | 159628 | 885.44 | 720 | 700 | 179.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

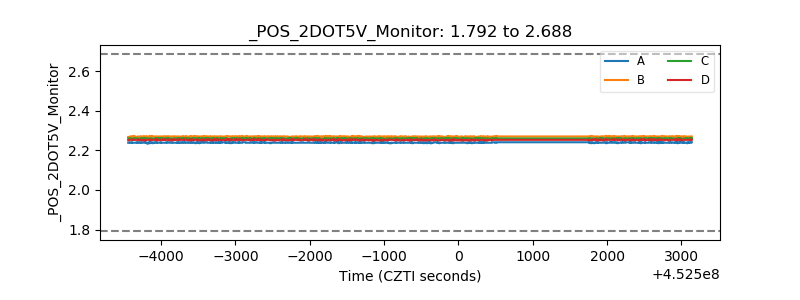

| +2.5 Volts monitor |  |

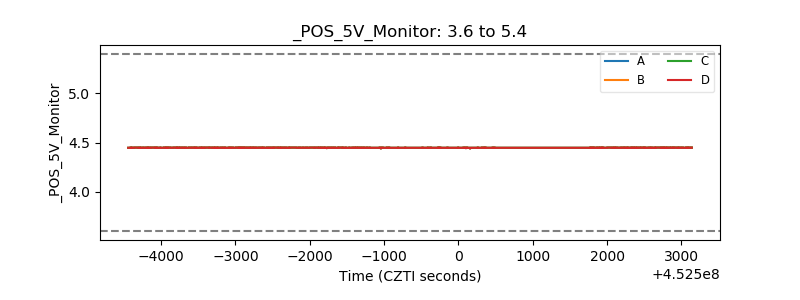

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
