| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_091T05_9000006224_46526cztM0_level2.fits | modeM0/AS1A13_091T05_9000006224_46526cztM0_level2_quad_clean.evt |
| Size (bytes) | 825,065,280 | 164,750,400 |
| Size | 786.8 MB | 157.1 MB |
| Events in quadrant A | 10,831,166 | 1,076,274 |
| Events in quadrant B | 8,313,842 | 1,047,218 |
| Events in quadrant C | 5,243,544 | 1,108,298 |
| Events in quadrant D | 5,327,533 | 1,018,064 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39425 | 2 |
| B | 0 | 31924 | 2 |
| C | 0 | 23290 | 2 |
| D | 0 | 23518 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 216 | 0 |
| B | 0 | 216 | 0 |
| C | 0 | 216 | 0 |
| D | 0 | 216 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10663 | 542 | 5.082997% |
| B | 10663 | 1160 | 10.878740% |
| C | 10663 | 145 | 1.359842% |
| D | 10662 | 158 | 1.481898% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11543 | 10663 | 141 | 141 | 1.22% | 1.32% |  |
| B | 11543 | 10663 | 637 | 637 | 5.52% | 5.97% |  |
| C | 11543 | 10664 | 50 | 50 | 0.43% | 0.47% |  |
| D | 11542 | 10664 | 54 | 54 | 0.47% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5025067 | 20047.53 | 1194 | 1165 | 250.6 |
| A | 9 | 191 | 983175 | 3918.64 | 1194 | 1165 | 250.6 |
| A | 13 | 248 | 134678 | 532.77 | 1194 | 1165 | 250.6 |
| B | 12 | 33 | 1865659 | 8153.85 | 1154 | 1120 | 228.7 |
| B | 15 | 201 | 545800 | 2381.95 | 1154 | 1120 | 228.7 |
| B | 5 | 255 | 354802 | 1546.69 | 1154 | 1120 | 228.7 |
| C | 14 | 254 | 317545 | 1111.34 | 1194 | 1199 | 284.7 |
| C | 9 | 54 | 219669 | 767.49 | 1194 | 1199 | 284.7 |
| C | 1 | 3 | 12182 | 38.58 | 1194 | 1199 | 284.7 |
| D | 1 | 52 | 149273 | 491.26 | 1194 | 1160 | 301.5 |
| D | 13 | 249 | 141331 | 464.92 | 1194 | 1160 | 301.5 |
| D | 2 | 37 | 82576 | 270.04 | 1194 | 1160 | 301.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

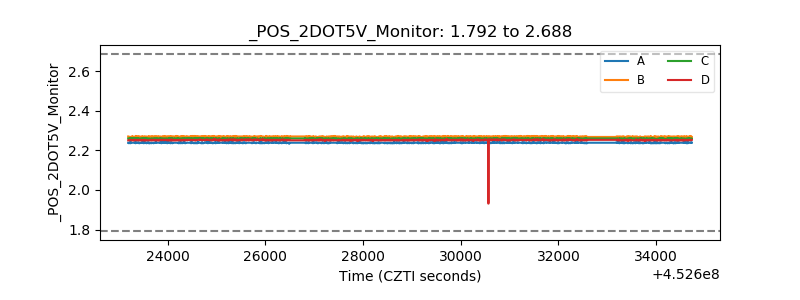

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
