| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_091T05_9000006224_46530cztM0_level2.fits | modeM0/AS1A13_091T05_9000006224_46530cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,756,160 | 113,296,320 |
| Size | 509.0 MB | 108.0 MB |
| Events in quadrant A | 7,878,478 | 709,105 |
| Events in quadrant B | 4,190,260 | 784,149 |
| Events in quadrant C | 3,325,770 | 760,202 |
| Events in quadrant D | 3,822,203 | 691,182 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28118 | 2 |
| B | 0 | 17117 | 2 |
| C | 0 | 14899 | 2 |
| D | 0 | 16339 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6979 | 689 | 9.872475% |
| B | 6979 | 171 | 2.450208% |
| C | 6980 | 44 | 0.630372% |
| D | 6980 | 92 | 1.318052% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8999 | 6980 | 505 | 505 | 5.61% | 7.23% |  |
| B | 8999 | 6979 | 68 | 68 | 0.76% | 0.97% |  |
| C | 9000 | 6982 | 16 | 16 | 0.18% | 0.23% |  |
| D | 9000 | 6982 | 78 | 78 | 0.87% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3367988 | 20843.31 | 774 | 756 | 161.5 |
| A | 13 | 248 | 1110491 | 6869.31 | 774 | 756 | 161.5 |
| A | 9 | 191 | 360843 | 2228.95 | 774 | 756 | 161.5 |
| B | 4 | 171 | 256369 | 1617.9 | 796 | 771 | 158.0 |
| B | 5 | 255 | 186783 | 1177.43 | 796 | 771 | 158.0 |
| B | 3 | 112 | 117988 | 741.97 | 796 | 771 | 158.0 |
| C | 9 | 54 | 220752 | 1175.19 | 788 | 792 | 187.2 |
| C | 1 | 3 | 15775 | 80.05 | 788 | 792 | 187.2 |
| C | 12 | 2 | 8545 | 41.42 | 788 | 792 | 187.2 |
| D | 13 | 249 | 217868 | 1095.26 | 781 | 757 | 198.2 |
| D | 1 | 52 | 150470 | 755.26 | 781 | 757 | 198.2 |
| D | 2 | 249 | 105887 | 530.35 | 781 | 757 | 198.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

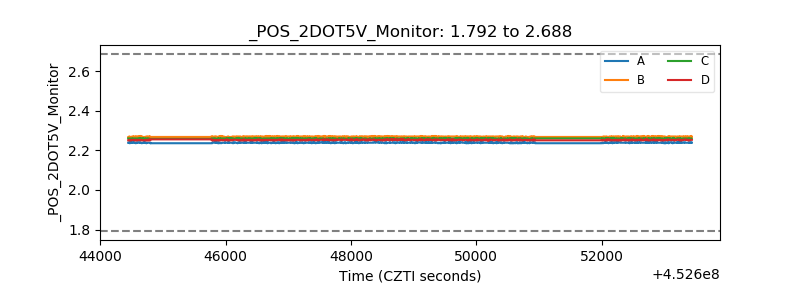

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
