| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_091T05_9000006224_46533cztM0_level2.fits | modeM0/AS1A13_091T05_9000006224_46533cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,153,920 | 113,855,040 |
| Size | 470.3 MB | 108.6 MB |
| Events in quadrant A | 6,790,210 | 745,878 |
| Events in quadrant B | 3,614,540 | 800,438 |
| Events in quadrant C | 3,185,041 | 757,783 |
| Events in quadrant D | 4,155,174 | 685,193 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24467 | 2 |
| B | 0 | 14744 | 2 |
| C | 0 | 13871 | 2 |
| D | 0 | 16721 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6577 | 310 | 4.713395% |
| B | 6577 | 95 | 1.444428% |
| C | 6577 | 30 | 0.456135% |
| D | 6577 | 138 | 2.098221% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7812 | 6577 | 149 | 149 | 1.91% | 2.27% |  |
| B | 7812 | 6577 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7812 | 6578 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7812 | 6578 | 135 | 135 | 1.73% | 2.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3287871 | 20185.46 | 781 | 763 | 162.8 |
| A | 9 | 191 | 302863 | 1855.13 | 781 | 763 | 162.8 |
| A | 13 | 248 | 166768 | 1019.4 | 781 | 763 | 162.8 |
| B | 5 | 255 | 112719 | 721.0 | 790 | 768 | 155.3 |
| B | 4 | 171 | 112614 | 720.32 | 790 | 768 | 155.3 |
| B | 3 | 112 | 111340 | 712.12 | 790 | 768 | 155.3 |
| C | 9 | 54 | 85207 | 465.99 | 771 | 777 | 181.2 |
| C | 14 | 254 | 31890 | 171.72 | 771 | 777 | 181.2 |
| C | 12 | 249 | 20983 | 111.52 | 771 | 777 | 181.2 |
| D | 13 | 249 | 954738 | 5034.49 | 760 | 738 | 189.5 |
| D | 1 | 52 | 86064 | 450.29 | 760 | 738 | 189.5 |
| D | 8 | 176 | 43530 | 225.82 | 760 | 738 | 189.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

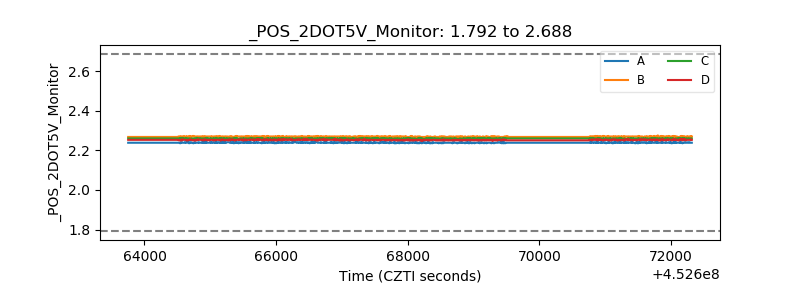

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
