| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_091T07_9000006226_46538cztM0_level2.fits | modeM0/AS1A13_091T07_9000006226_46538cztM0_level2_quad_clean.evt |
| Size (bytes) | 622,874,880 | 121,656,960 |
| Size | 594.0 MB | 116.0 MB |
| Events in quadrant A | 7,271,669 | 815,280 |
| Events in quadrant B | 6,784,269 | 812,647 |
| Events in quadrant C | 3,616,965 | 802,254 |
| Events in quadrant D | 4,791,785 | 720,657 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26714 | 3 |
| B | 0 | 25477 | 0 |
| C | 0 | 16394 | 0 |
| D | 0 | 19483 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7655 | 153 | 1.998694% |
| B | 7656 | 434 | 5.668757% |
| C | 7656 | 56 | 0.731452% |
| D | 7656 | 239 | 3.121735% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7655 | 7655 | 19 | 19 | 0.25% | 0.25% |  |
| B | 7656 | 7656 | 261 | 261 | 3.41% | 3.41% |  |
| C | 7656 | 7656 | 44 | 44 | 0.57% | 0.57% |  |
| D | 7656 | 7656 | 205 | 205 | 2.68% | 2.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3485444 | 19302.66 | 867 | 849 | 180.5 |
| A | 9 | 191 | 318170 | 1757.78 | 867 | 849 | 180.5 |
| A | 13 | 248 | 58971 | 321.96 | 867 | 849 | 180.5 |
| B | 10 | 128 | 1503954 | 8829.11 | 851 | 827 | 170.2 |
| B | 0 | 189 | 815634 | 4786.04 | 851 | 827 | 170.2 |
| B | 3 | 112 | 771122 | 4524.58 | 851 | 827 | 170.2 |
| C | 14 | 254 | 141812 | 703.45 | 849 | 855 | 200.4 |
| C | 12 | 249 | 82520 | 407.55 | 849 | 855 | 200.4 |
| C | 3 | 233 | 39044 | 190.58 | 849 | 855 | 200.4 |
| D | 2 | 37 | 443382 | 2090.66 | 845 | 820 | 211.7 |
| D | 13 | 249 | 324010 | 1526.75 | 845 | 820 | 211.7 |
| D | 8 | 176 | 277607 | 1307.54 | 845 | 820 | 211.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

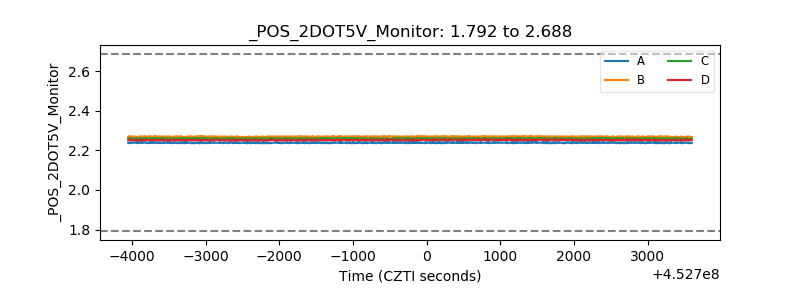

| +2.5 Volts monitor |  |

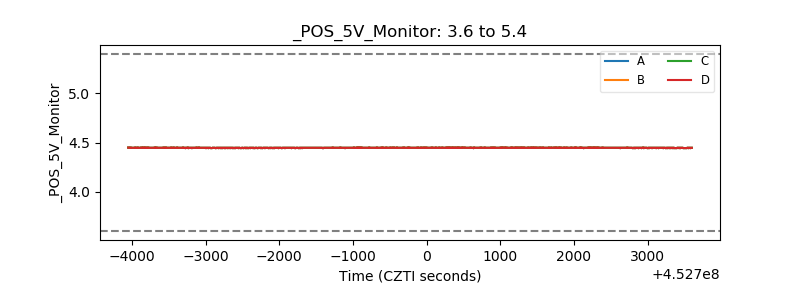

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
