| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_091T07_9000006226_46542cztM0_level2.fits | modeM0/AS1A13_091T07_9000006226_46542cztM0_level2_quad_clean.evt |
| Size (bytes) | 102,286,080 | 19,212,480 |
| Size | 97.5 MB | 18.3 MB |
| Events in quadrant A | 1,360,754 | 121,072 |
| Events in quadrant B | 643,871 | 132,044 |
| Events in quadrant C | 576,849 | 125,527 |
| Events in quadrant D | 1,110,284 | 113,549 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4893 | 1 |
| B | 0 | 2712 | 1 |
| C | 0 | 2534 | 1 |
| D | 0 | 4144 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1182 | 97 | 8.206430% |
| B | 1182 | 21 | 1.776650% |
| C | 1182 | 11 | 0.930626% |
| D | 1182 | 52 | 4.399323% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1182 | 1182 | 27 | 27 | 2.28% | 2.28% |  |
| B | 1182 | 1182 | 9 | 9 | 0.76% | 0.76% |  |
| C | 1182 | 1182 | 4 | 4 | 0.34% | 0.34% |  |
| D | 1182 | 1182 | 32 | 32 | 2.71% | 2.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 794368 | 27086.24 | 130 | 126 | 29.3 |
| A | 9 | 191 | 45305 | 1540.75 | 130 | 126 | 29.3 |
| A | 0 | 243 | 4849 | 161.07 | 130 | 126 | 29.3 |
| B | 0 | 245 | 45651 | 1587.87 | 134 | 129 | 28.7 |
| B | 3 | 112 | 20844 | 722.57 | 134 | 129 | 28.7 |
| B | 5 | 32 | 14613 | 505.22 | 134 | 129 | 28.7 |
| C | 9 | 54 | 28959 | 866.23 | 133 | 134 | 33.3 |
| C | 12 | 2 | 6207 | 182.5 | 133 | 134 | 33.3 |
| C | 3 | 233 | 6199 | 182.26 | 133 | 134 | 33.3 |
| D | 8 | 176 | 331210 | 9345.6 | 132 | 127 | 35.4 |
| D | 1 | 52 | 103373 | 2914.36 | 132 | 127 | 35.4 |
| D | 5 | 33 | 62582 | 1762.94 | 132 | 127 | 35.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

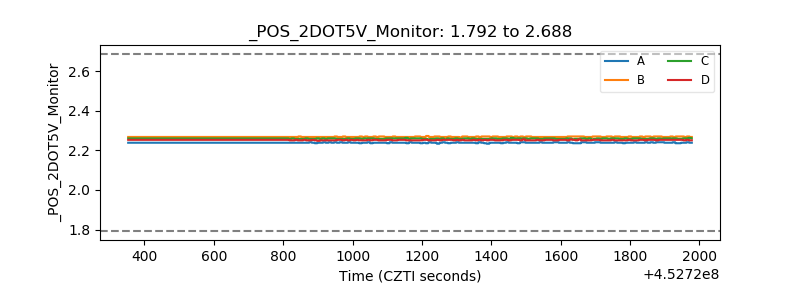

| +2.5 Volts monitor |  |
