| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_091T08_9000006228_46549cztM0_level2.fits | modeM0/AS1A13_091T08_9000006228_46549cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,233,920 | 108,561,600 |
| Size | 531.4 MB | 103.5 MB |
| Events in quadrant A | 6,497,272 | 720,812 |
| Events in quadrant B | 3,546,148 | 761,756 |
| Events in quadrant C | 3,303,155 | 729,103 |
| Events in quadrant D | 6,755,848 | 603,692 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23350 | 2 |
| B | 0 | 14834 | 2 |
| C | 0 | 14581 | 2 |
| D | 0 | 24753 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6765 | 386 | 5.705839% |
| B | 6765 | 254 | 3.754619% |
| C | 6765 | 182 | 2.690318% |
| D | 6765 | 924 | 13.658537% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7670 | 6765 | 15 | 15 | 0.20% | 0.22% |  |
| B | 7670 | 6765 | 15 | 15 | 0.20% | 0.22% |  |
| C | 7670 | 6765 | 54 | 54 | 0.70% | 0.80% |  |
| D | 7670 | 6765 | 689 | 689 | 8.98% | 10.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3286172 | 19801.53 | 792 | 776 | 165.9 |
| A | 13 | 248 | 66295 | 394.89 | 792 | 776 | 165.9 |
| A | 9 | 191 | 51358 | 304.86 | 792 | 776 | 165.9 |
| B | 0 | 189 | 96597 | 602.42 | 797 | 772 | 159.1 |
| B | 3 | 112 | 92544 | 576.94 | 797 | 772 | 159.1 |
| B | 5 | 255 | 65176 | 404.89 | 797 | 772 | 159.1 |
| C | 14 | 254 | 198424 | 1064.78 | 785 | 788 | 185.6 |
| C | 9 | 54 | 14243 | 72.49 | 785 | 788 | 185.6 |
| C | 1 | 3 | 8643 | 42.32 | 785 | 788 | 185.6 |
| D | 13 | 249 | 1796473 | 9346.55 | 754 | 729 | 192.1 |
| D | 1 | 52 | 1532220 | 7971.16 | 754 | 729 | 192.1 |
| D | 2 | 120 | 298970 | 1552.3 | 754 | 729 | 192.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

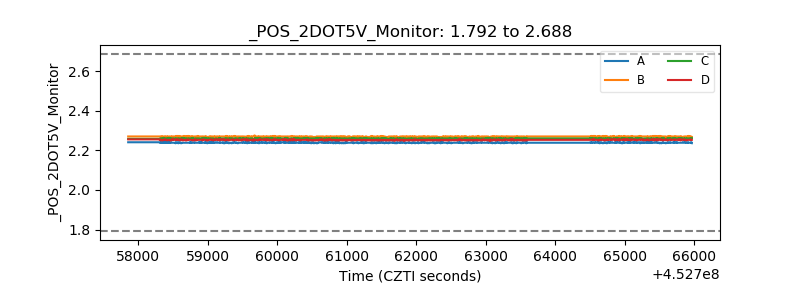

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
