| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_091T08_9000006228_46551cztM0_level2.fits | modeM0/AS1A13_091T08_9000006228_46551cztM0_level2_quad_clean.evt |
| Size (bytes) | 673,513,920 | 126,959,040 |
| Size | 642.3 MB | 121.1 MB |
| Events in quadrant A | 7,301,910 | 842,156 |
| Events in quadrant B | 4,630,039 | 884,920 |
| Events in quadrant C | 4,439,288 | 844,758 |
| Events in quadrant D | 7,929,733 | 706,270 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26294 | 1 |
| B | 0 | 19127 | 1 |
| C | 0 | 19044 | 1 |
| D | 0 | 29085 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8139 | 437 | 5.369210% |
| B | 8139 | 315 | 3.870254% |
| C | 8139 | 276 | 3.391080% |
| D | 8139 | 1117 | 13.724045% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8159 | 8139 | 2 | 2 | 0.02% | 0.02% |  |
| B | 8159 | 8139 | 39 | 39 | 0.48% | 0.48% |  |
| C | 8159 | 8139 | 116 | 116 | 1.42% | 1.43% |  |
| D | 8159 | 8139 | 882 | 882 | 10.81% | 10.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3587628 | 18179.1 | 940 | 916 | 197.3 |
| A | 9 | 191 | 37197 | 183.89 | 940 | 916 | 197.3 |
| A | 13 | 254 | 13812 | 65.36 | 940 | 916 | 197.3 |
| B | 2 | 2 | 420576 | 2254.04 | 937 | 907 | 186.2 |
| B | 0 | 189 | 156149 | 833.8 | 937 | 907 | 186.2 |
| B | 3 | 112 | 105147 | 559.87 | 937 | 907 | 186.2 |
| C | 1 | 241 | 492765 | 2263.04 | 924 | 928 | 217.3 |
| C | 14 | 254 | 267459 | 1226.36 | 924 | 928 | 217.3 |
| C | 2 | 14 | 29330 | 130.68 | 924 | 928 | 217.3 |
| D | 1 | 52 | 1675601 | 7404.54 | 885 | 854 | 226.2 |
| D | 13 | 249 | 1162892 | 5137.71 | 885 | 854 | 226.2 |
| D | 5 | 33 | 1062426 | 4693.52 | 885 | 854 | 226.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

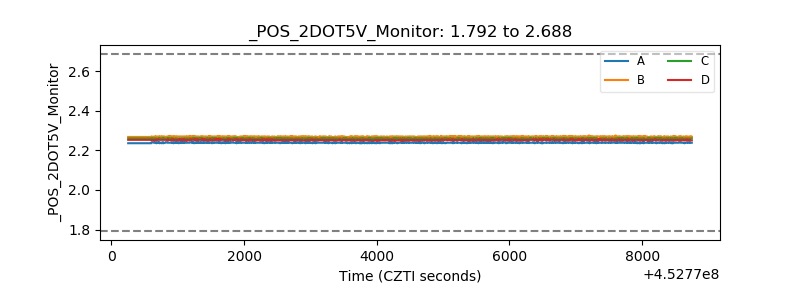

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
