| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_005T02_9000006230_46556cztM0_level2.fits | modeM0/AS1C03_005T02_9000006230_46556cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,006,989,120 | 151,934,400 |
| Size | 960.3 MB | 144.9 MB |
| Events in quadrant A | 9,541,917 | 1,076,494 |
| Events in quadrant B | 5,178,045 | 1,120,116 |
| Events in quadrant C | 14,270,170 | 720,306 |
| Events in quadrant D | 7,485,973 | 965,826 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 212 | 0 |
| B | 0 | 212 | 0 |
| C | 0 | 212 | 0 |
| D | 0 | 212 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34792 | 2 |
| B | 0 | 22677 | 2 |
| C | 0 | 49551 | 2 |
| D | 0 | 29512 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10348 | 291 | 2.812138% |
| B | 10349 | 111 | 1.072567% |
| C | 10349 | 3527 | 34.080587% |
| D | 10349 | 364 | 3.517248% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11783 | 10348 | 69 | 69 | 0.59% | 0.67% |  |
| B | 11784 | 10349 | 7 | 7 | 0.06% | 0.07% |  |
| C | 11784 | 10349 | 3456 | 3456 | 29.33% | 33.39% |  |
| D | 11784 | 10349 | 281 | 281 | 2.38% | 2.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4894352 | 21280.73 | 1118 | 1093 | 229.9 |
| A | 0 | 247 | 155478 | 671.42 | 1118 | 1093 | 229.9 |
| A | 14 | 235 | 67139 | 287.23 | 1118 | 1093 | 229.9 |
| B | 2 | 2 | 486545 | 2164.52 | 1125 | 1086 | 224.3 |
| B | 0 | 245 | 59204 | 259.13 | 1125 | 1086 | 224.3 |
| B | 3 | 112 | 56778 | 248.31 | 1125 | 1086 | 224.3 |
| C | 1 | 241 | 10288273 | 48104.94 | 919 | 922 | 213.9 |
| C | 14 | 254 | 287523 | 1340.18 | 919 | 922 | 213.9 |
| C | 12 | 2 | 42007 | 192.12 | 919 | 922 | 213.9 |
| D | 1 | 52 | 1946511 | 7147.36 | 1089 | 1053 | 272.2 |
| D | 13 | 249 | 364085 | 1333.73 | 1089 | 1053 | 272.2 |
| D | 2 | 120 | 204362 | 746.93 | 1089 | 1053 | 272.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

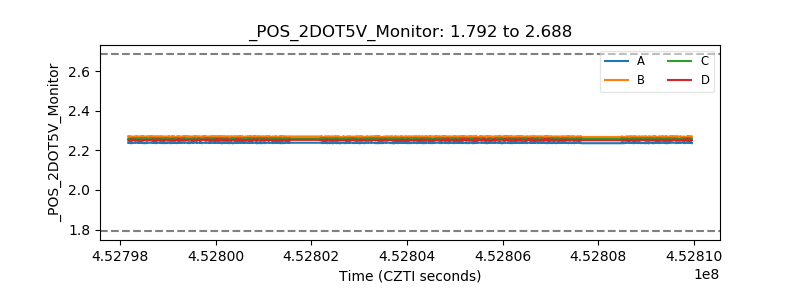

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
