| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_005T02_9000006230_46560cztM0_level2.fits | modeM0/AS1C03_005T02_9000006230_46560cztM0_level2_quad_clean.evt |
| Size (bytes) | 867,159,360 | 197,314,560 |
| Size | 827.0 MB | 188.2 MB |
| Events in quadrant A | 11,292,738 | 1,316,604 |
| Events in quadrant B | 5,671,152 | 1,379,407 |
| Events in quadrant C | 5,496,446 | 1,306,351 |
| Events in quadrant D | 8,716,405 | 1,147,209 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 242 | 0 |
| B | 0 | 242 | 0 |
| C | 0 | 242 | 0 |
| D | 0 | 242 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41070 | 3 |
| B | 0 | 25158 | 3 |
| C | 0 | 24930 | 3 |
| D | 0 | 34185 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11928 | 391 | 3.278001% |
| B | 11928 | 85 | 0.712609% |
| C | 11928 | 65 | 0.544936% |
| D | 11928 | 622 | 5.214621% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14158 | 11928 | 137 | 137 | 0.97% | 1.15% |  |
| B | 14158 | 11928 | 11 | 11 | 0.08% | 0.09% |  |
| C | 14158 | 11930 | 30 | 30 | 0.21% | 0.25% |  |
| D | 14158 | 11928 | 501 | 501 | 3.54% | 4.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5875777 | 21801.7 | 1311 | 1283 | 269.5 |
| A | 13 | 248 | 185041 | 681.97 | 1311 | 1283 | 269.5 |
| A | 0 | 247 | 72108 | 262.85 | 1311 | 1283 | 269.5 |
| B | 15 | 201 | 100729 | 389.97 | 1325 | 1285 | 255.0 |
| B | 0 | 245 | 71015 | 273.45 | 1325 | 1285 | 255.0 |
| B | 5 | 172 | 42822 | 162.89 | 1325 | 1285 | 255.0 |
| C | 14 | 254 | 197329 | 649.53 | 1305 | 1308 | 301.8 |
| C | 12 | 2 | 104341 | 341.41 | 1305 | 1308 | 301.8 |
| C | 1 | 3 | 48114 | 155.1 | 1305 | 1308 | 301.8 |
| D | 1 | 52 | 1955771 | 6216.99 | 1273 | 1234 | 314.4 |
| D | 13 | 249 | 600247 | 1905.34 | 1273 | 1234 | 314.4 |
| D | 8 | 176 | 377435 | 1196.62 | 1273 | 1234 | 314.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

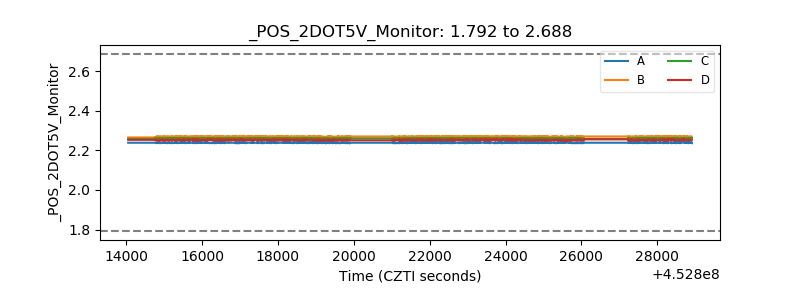

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
