| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000006232_46573cztM0_level2.fits | modeM0/AS1C07_001T10_9000006232_46573cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,147,840 | 105,969,600 |
| Size | 509.4 MB | 101.1 MB |
| Events in quadrant A | 6,174,954 | 691,079 |
| Events in quadrant B | 3,294,313 | 731,708 |
| Events in quadrant C | 2,960,625 | 722,569 |
| Events in quadrant D | 6,834,502 | 606,197 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22743 | 2 |
| B | 0 | 14625 | 2 |
| C | 0 | 13707 | 2 |
| D | 0 | 24979 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6556 | 244 | 3.721782% |
| B | 6556 | 58 | 0.884686% |
| C | 6556 | 51 | 0.777913% |
| D | 6556 | 724 | 11.043319% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7581 | 6557 | 92 | 92 | 1.21% | 1.40% |  |
| B | 7581 | 6557 | 29 | 29 | 0.38% | 0.44% |  |
| C | 7581 | 6556 | 24 | 24 | 0.32% | 0.37% |  |
| D | 7581 | 6556 | 685 | 685 | 9.04% | 10.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3326714 | 22854.13 | 703 | 686 | 145.5 |
| A | 0 | 243 | 50641 | 343.26 | 703 | 686 | 145.5 |
| A | 9 | 191 | 35174 | 236.98 | 703 | 686 | 145.5 |
| B | 2 | 2 | 171653 | 1222.74 | 713 | 690 | 139.8 |
| B | 5 | 32 | 85097 | 603.69 | 713 | 690 | 139.8 |
| B | 3 | 112 | 72979 | 517.02 | 713 | 690 | 139.8 |
| C | 12 | 249 | 58128 | 346.22 | 713 | 716 | 165.8 |
| C | 12 | 2 | 57666 | 343.44 | 713 | 716 | 165.8 |
| C | 12 | 250 | 32866 | 193.88 | 713 | 716 | 165.8 |
| D | 13 | 138 | 2322839 | 13659.47 | 681 | 658 | 170.0 |
| D | 1 | 52 | 846274 | 4974.06 | 681 | 658 | 170.0 |
| D | 2 | 120 | 397008 | 2331.4 | 681 | 658 | 170.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

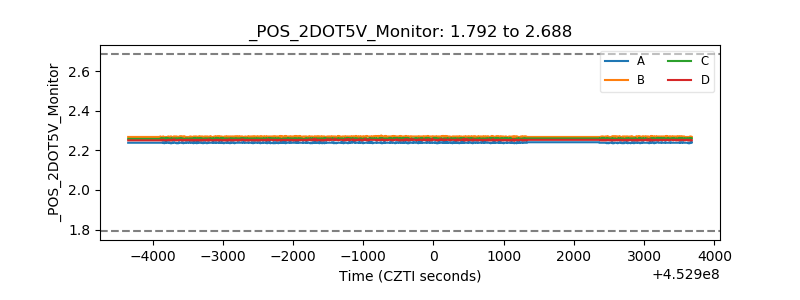

| +2.5 Volts monitor |  |

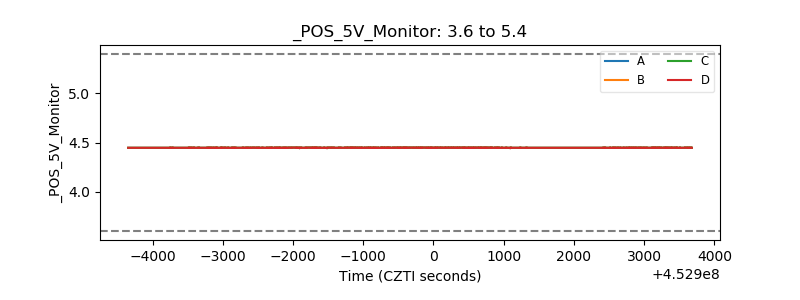

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
