| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T03_9000006234_46590cztM0_level2.fits | modeM0/AS1A13_092T03_9000006234_46590cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,937,920 | 113,742,720 |
| Size | 478.7 MB | 108.5 MB |
| Events in quadrant A | 6,448,781 | 749,690 |
| Events in quadrant B | 3,465,331 | 792,428 |
| Events in quadrant C | 3,268,955 | 763,923 |
| Events in quadrant D | 4,884,226 | 676,969 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23539 | 2 |
| B | 0 | 14570 | 2 |
| C | 0 | 14200 | 2 |
| D | 0 | 19010 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6615 | 206 | 3.114135% |
| B | 6615 | 125 | 1.889645% |
| C | 6615 | 43 | 0.650038% |
| D | 6615 | 233 | 3.522298% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7840 | 6616 | 71 | 71 | 0.91% | 1.07% |  |
| B | 7840 | 6616 | 45 | 45 | 0.57% | 0.68% |  |
| C | 7840 | 6616 | 26 | 26 | 0.33% | 0.39% |  |
| D | 7840 | 6616 | 165 | 165 | 2.10% | 2.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3398642 | 21393.59 | 766 | 750 | 158.8 |
| A | 13 | 34 | 30990 | 190.4 | 766 | 750 | 158.8 |
| A | 9 | 191 | 19466 | 117.84 | 766 | 750 | 158.8 |
| B | 5 | 32 | 114879 | 755.29 | 774 | 750 | 151.1 |
| B | 0 | 245 | 61166 | 399.83 | 774 | 750 | 151.1 |
| B | 15 | 201 | 47729 | 310.9 | 774 | 750 | 151.1 |
| C | 14 | 254 | 178244 | 991.99 | 761 | 765 | 178.9 |
| C | 1 | 3 | 50668 | 278.92 | 761 | 765 | 178.9 |
| C | 3 | 233 | 48086 | 264.49 | 761 | 765 | 178.9 |
| D | 1 | 52 | 874793 | 4669.92 | 746 | 722 | 187.2 |
| D | 2 | 37 | 447754 | 2388.37 | 746 | 722 | 187.2 |
| D | 2 | 120 | 192448 | 1024.34 | 746 | 722 | 187.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

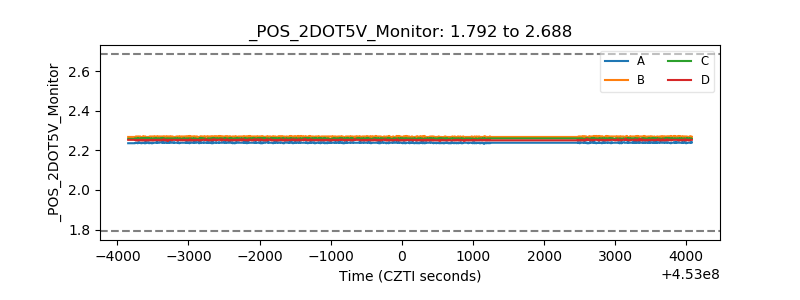

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
