| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T08_9000006236_46596cztM0_level2.fits | modeM0/AS1A13_092T08_9000006236_46596cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,699,520 | 115,367,040 |
| Size | 571.9 MB | 110.0 MB |
| Events in quadrant A | 7,298,760 | 776,979 |
| Events in quadrant B | 3,621,586 | 804,716 |
| Events in quadrant C | 3,810,034 | 768,671 |
| Events in quadrant D | 6,897,717 | 630,012 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27069 | 0 |
| B | 0 | 15720 | 0 |
| C | 0 | 16548 | 0 |
| D | 0 | 25458 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7369 | 184 | 2.496947% |
| B | 7370 | 60 | 0.814111% |
| C | 7370 | 90 | 1.221167% |
| D | 7370 | 975 | 13.229308% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7369 | 7369 | 9 | 9 | 0.12% | 0.12% |  |
| B | 7370 | 7370 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7370 | 7370 | 80 | 80 | 1.09% | 1.09% |  |
| D | 7370 | 7370 | 783 | 783 | 10.62% | 10.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3632591 | 20727.19 | 835 | 815 | 175.2 |
| A | 9 | 191 | 259842 | 1478.31 | 835 | 815 | 175.2 |
| A | 13 | 248 | 73260 | 413.46 | 835 | 815 | 175.2 |
| B | 2 | 2 | 91775 | 551.02 | 833 | 807 | 165.1 |
| B | 15 | 201 | 56794 | 339.13 | 833 | 807 | 165.1 |
| B | 0 | 245 | 32602 | 192.59 | 833 | 807 | 165.1 |
| C | 12 | 2 | 328327 | 1677.19 | 820 | 824 | 195.3 |
| C | 14 | 254 | 144772 | 737.18 | 820 | 824 | 195.3 |
| C | 15 | 208 | 50069 | 252.19 | 820 | 824 | 195.3 |
| D | 2 | 249 | 1284799 | 6449.78 | 778 | 753 | 199.1 |
| D | 1 | 52 | 1242103 | 6235.32 | 778 | 753 | 199.1 |
| D | 13 | 249 | 500933 | 2512.41 | 778 | 753 | 199.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

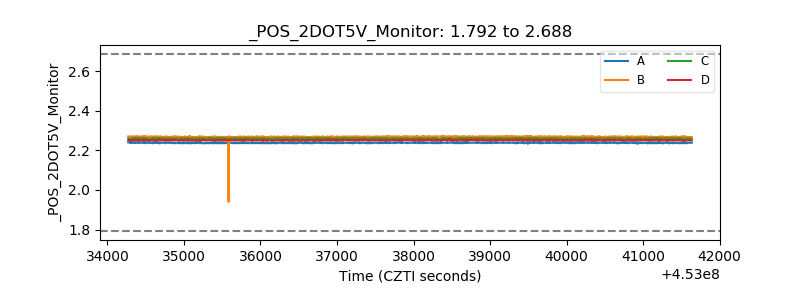

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
