| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T09_9000006238_46607cztM0_level2.fits | modeM0/AS1A13_092T09_9000006238_46607cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,648,320 | 104,768,640 |
| Size | 459.3 MB | 99.9 MB |
| Events in quadrant A | 6,301,909 | 664,903 |
| Events in quadrant B | 3,801,817 | 706,392 |
| Events in quadrant C | 3,225,373 | 707,275 |
| Events in quadrant D | 3,997,989 | 642,671 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23107 | 1 |
| B | 0 | 15817 | 1 |
| C | 0 | 14522 | 1 |
| D | 0 | 16514 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6465 | 320 | 4.949729% |
| B | 6465 | 307 | 4.748647% |
| C | 6466 | 213 | 3.294154% |
| D | 6466 | 223 | 3.448809% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7280 | 6466 | 96 | 96 | 1.32% | 1.48% |  |
| B | 7280 | 6466 | 79 | 79 | 1.09% | 1.22% |  |
| C | 7281 | 6467 | 68 | 68 | 0.93% | 1.05% |  |
| D | 7281 | 6467 | 118 | 118 | 1.62% | 1.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3248639 | 20335.04 | 760 | 746 | 159.7 |
| A | 9 | 191 | 31794 | 194.39 | 760 | 746 | 159.7 |
| A | 15 | 235 | 29802 | 181.92 | 760 | 746 | 159.7 |
| B | 15 | 201 | 460470 | 3086.72 | 748 | 726 | 148.9 |
| B | 0 | 189 | 186675 | 1248.46 | 748 | 726 | 148.9 |
| B | 0 | 198 | 61403 | 407.39 | 748 | 726 | 148.9 |
| C | 1 | 3 | 162271 | 916.02 | 739 | 743 | 176.3 |
| C | 14 | 254 | 143949 | 812.12 | 739 | 743 | 176.3 |
| C | 3 | 233 | 12375 | 65.96 | 739 | 743 | 176.3 |
| D | 12 | 128 | 314732 | 1596.16 | 758 | 735 | 196.7 |
| D | 1 | 52 | 273396 | 1386.03 | 758 | 735 | 196.7 |
| D | 4 | 223 | 92045 | 464.16 | 758 | 735 | 196.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

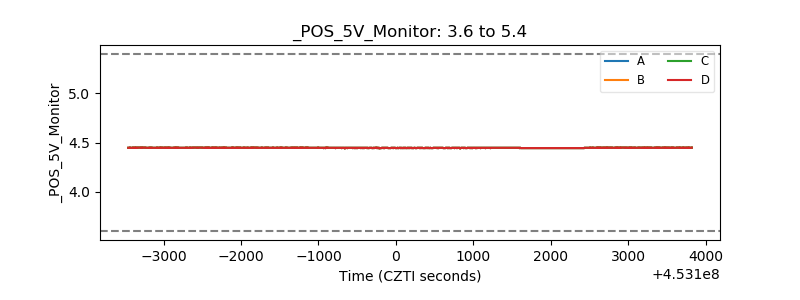

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
