| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T01_9000006240_46614cztM0_level2.fits | modeM0/AS1A13_080T01_9000006240_46614cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,042,259,840 | 372,467,520 |
| Size | 1.9 GB | 355.2 MB |
| Events in quadrant A | 24,939,646 | 2,508,251 |
| Events in quadrant B | 16,330,142 | 2,415,483 |
| Events in quadrant C | 13,618,919 | 2,503,166 |
| Events in quadrant D | 19,010,217 | 2,332,640 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 450 | 0 |
| B | 0 | 450 | 0 |
| C | 0 | 450 | 0 |
| D | 0 | 450 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 88722 | 4 |
| B | 0 | 64430 | 10 |
| C | 0 | 57771 | 4 |
| D | 0 | 71778 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 22046 | 2299 | 10.428196% |
| B | 22044 | 2191 | 9.939212% |
| C | 22047 | 2003 | 9.085136% |
| D | 22047 | 2208 | 10.014968% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 23456 | 22051 | 1829 | 1829 | 7.80% | 8.29% |  |
| B | 23457 | 22050 | 1392 | 1392 | 5.93% | 6.31% |  |
| C | 23457 | 22051 | 1265 | 1265 | 5.39% | 5.74% |  |
| D | 23457 | 22052 | 1920 | 1920 | 8.19% | 8.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10022847 | 15280.98 | 2937 | 2890 | 655.7 |
| A | 0 | 247 | 2917877 | 4445.51 | 2937 | 2890 | 655.7 |
| A | 0 | 226 | 189199 | 284.13 | 2937 | 2890 | 655.7 |
| B | 12 | 3 | 3117903 | 5662.23 | 2715 | 2651 | 550.2 |
| B | 5 | 32 | 951362 | 1724.36 | 2715 | 2651 | 550.2 |
| B | 0 | 189 | 725558 | 1313.94 | 2715 | 2651 | 550.2 |
| C | 14 | 254 | 2133053 | 2800.02 | 2859 | 2871 | 760.8 |
| C | 3 | 233 | 112313 | 143.86 | 2859 | 2871 | 760.8 |
| C | 12 | 2 | 110130 | 140.99 | 2859 | 2871 | 760.8 |
| D | 1 | 52 | 2693249 | 3092.9 | 3019 | 2935 | 869.8 |
| D | 12 | 128 | 1484355 | 1703.1 | 3019 | 2935 | 869.8 |
| D | 13 | 249 | 1394110 | 1599.35 | 3019 | 2935 | 869.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

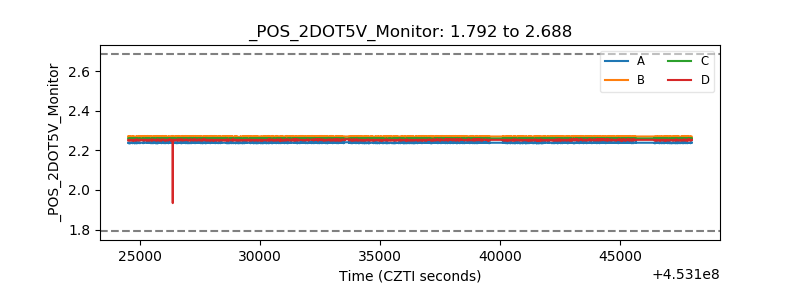

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
