| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T02_9000006242_46619cztM0_level2.fits | modeM0/AS1A13_080T02_9000006242_46619cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,402,880 | 111,159,360 |
| Size | 468.6 MB | 106.0 MB |
| Events in quadrant A | 6,264,614 | 719,504 |
| Events in quadrant B | 3,541,823 | 781,167 |
| Events in quadrant C | 2,983,621 | 762,287 |
| Events in quadrant D | 4,902,206 | 655,277 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22633 | 4 |
| B | 0 | 15053 | 2 |
| C | 0 | 13889 | 2 |
| D | 0 | 19046 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6419 | 285 | 4.439944% |
| B | 6419 | 104 | 1.620190% |
| C | 6419 | 62 | 0.965883% |
| D | 6419 | 427 | 6.652126% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7589 | 6420 | 164 | 164 | 2.16% | 2.55% |  |
| B | 7589 | 6420 | 46 | 46 | 0.61% | 0.72% |  |
| C | 7589 | 6420 | 21 | 21 | 0.28% | 0.33% |  |
| D | 7589 | 6420 | 324 | 324 | 4.27% | 5.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3253450 | 22385.98 | 704 | 690 | 145.3 |
| A | 9 | 191 | 164334 | 1126.22 | 704 | 690 | 145.3 |
| A | 0 | 247 | 41506 | 280.9 | 704 | 690 | 145.3 |
| B | 15 | 201 | 308909 | 2268.26 | 703 | 683 | 135.9 |
| B | 0 | 189 | 245739 | 1803.39 | 703 | 683 | 135.9 |
| B | 5 | 32 | 82112 | 599.24 | 703 | 683 | 135.9 |
| C | 14 | 254 | 220553 | 1347.19 | 701 | 705 | 163.2 |
| C | 9 | 237 | 10461 | 59.78 | 701 | 705 | 163.2 |
| C | 12 | 249 | 10329 | 58.97 | 701 | 705 | 163.2 |
| D | 12 | 128 | 571673 | 3332.31 | 688 | 667 | 171.4 |
| D | 13 | 249 | 512118 | 2984.75 | 688 | 667 | 171.4 |
| D | 1 | 52 | 396005 | 2307.14 | 688 | 667 | 171.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

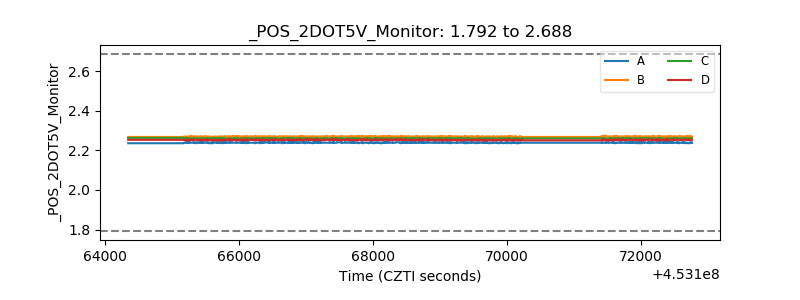

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
