| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T02_9000006242_46621cztM0_level2.fits | modeM0/AS1A13_080T02_9000006242_46621cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,516,800 | 110,862,720 |
| Size | 462.1 MB | 105.7 MB |
| Events in quadrant A | 6,423,972 | 728,126 |
| Events in quadrant B | 3,674,140 | 759,861 |
| Events in quadrant C | 2,930,897 | 729,195 |
| Events in quadrant D | 4,366,031 | 654,768 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23366 | 2 |
| B | 0 | 15781 | 2 |
| C | 0 | 14258 | 2 |
| D | 0 | 17775 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6958 | 267 | 3.837310% |
| B | 6958 | 210 | 3.018109% |
| C | 6958 | 94 | 1.350963% |
| D | 6958 | 237 | 3.406151% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7888 | 6959 | 12 | 12 | 0.15% | 0.17% |  |
| B | 7888 | 6959 | 64 | 64 | 0.81% | 0.92% |  |
| C | 7888 | 6959 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7888 | 6959 | 98 | 98 | 1.24% | 1.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3452551 | 22698.97 | 732 | 715 | 152.1 |
| A | 9 | 191 | 67663 | 440.24 | 732 | 715 | 152.1 |
| A | 0 | 247 | 35105 | 226.15 | 732 | 715 | 152.1 |
| B | 15 | 201 | 256604 | 1798.05 | 735 | 713 | 142.3 |
| B | 4 | 171 | 223243 | 1563.63 | 735 | 713 | 142.3 |
| B | 5 | 32 | 93343 | 650.87 | 735 | 713 | 142.3 |
| C | 14 | 254 | 35149 | 202.09 | 734 | 738 | 170.3 |
| C | 1 | 3 | 11840 | 65.2 | 734 | 738 | 170.3 |
| C | 9 | 54 | 7577 | 40.16 | 734 | 738 | 170.3 |
| D | 1 | 52 | 720606 | 4003.73 | 724 | 701 | 179.8 |
| D | 8 | 176 | 191687 | 1062.16 | 724 | 701 | 179.8 |
| D | 15 | 127 | 129705 | 717.45 | 724 | 701 | 179.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

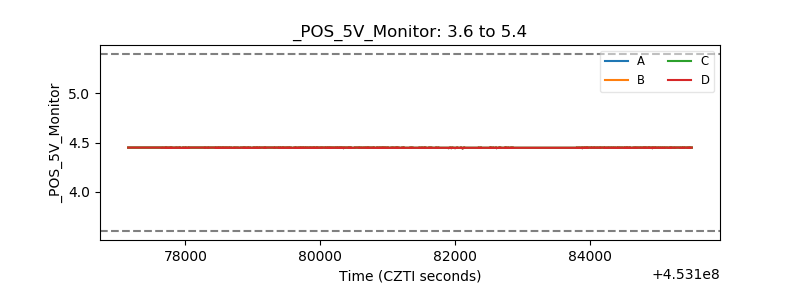

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
